2023 Hyundai 220 Used excavator 20 ton excavator for sale

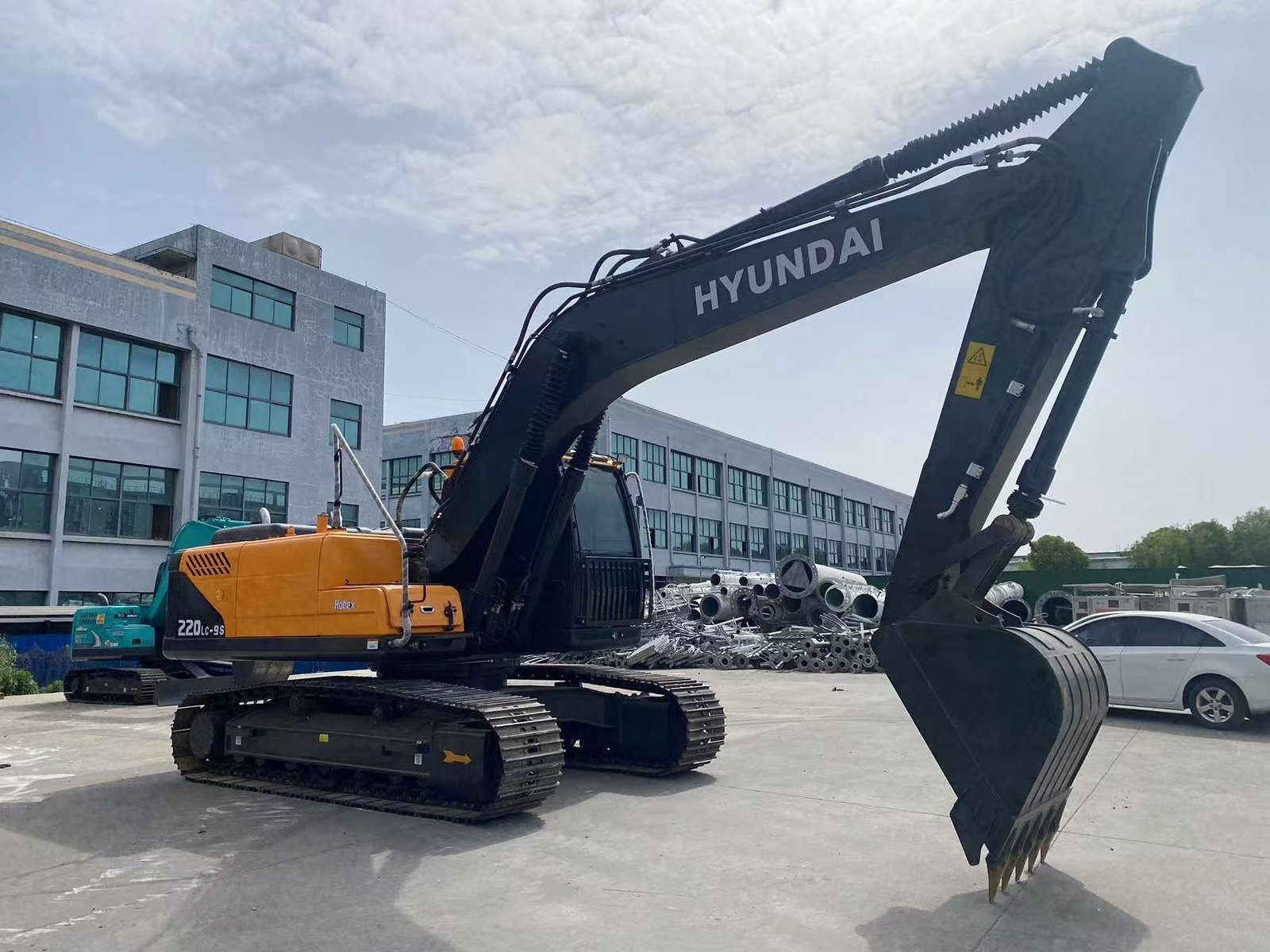

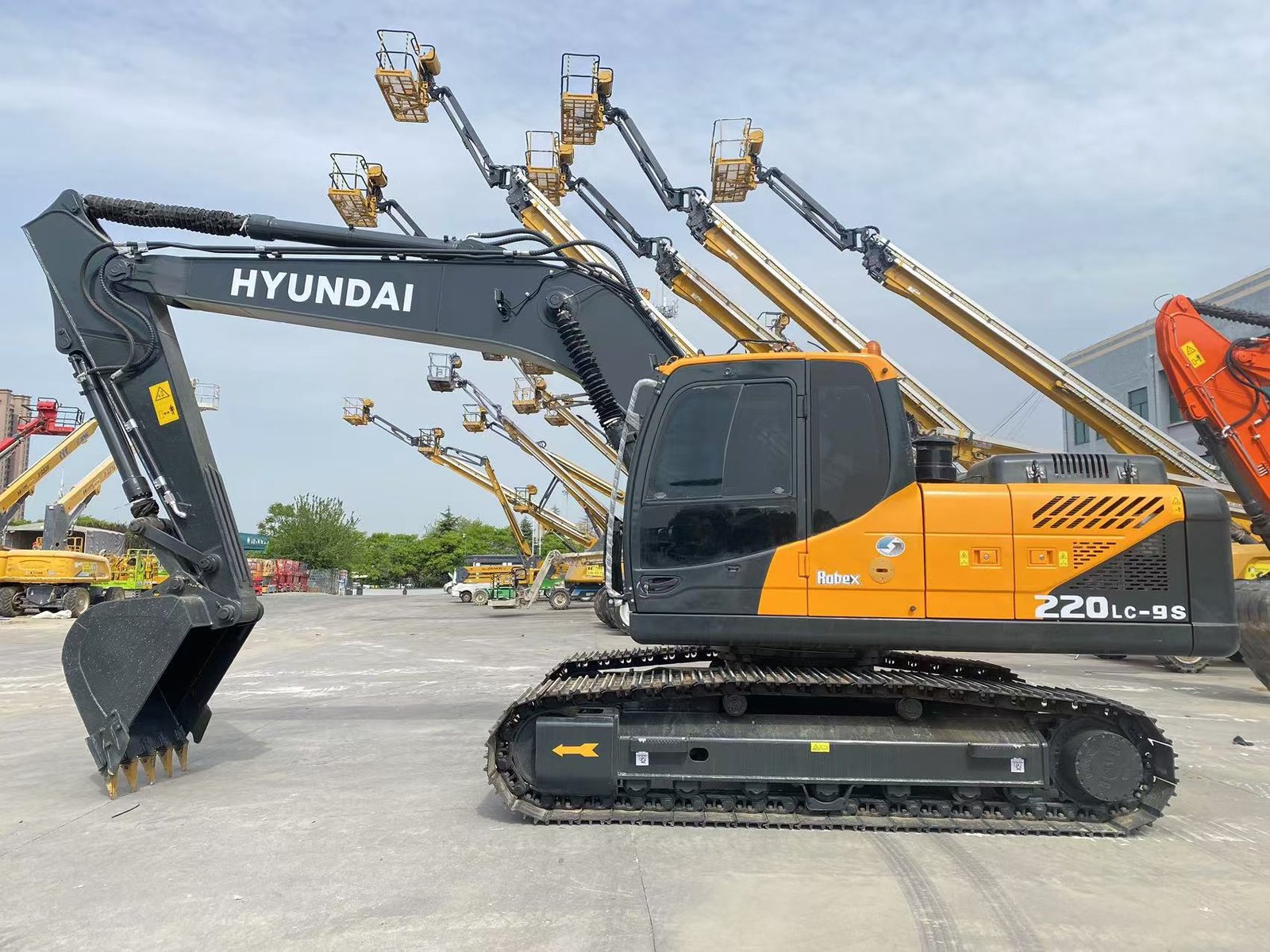

Hyundai R220 Excavator — Detailed Description (English)

Overview

The Hyundai R220 Excavator is a mid-sized crawler excavator engineered to deliver strong digging performance, robust undercarriage durability and operator comfort for a wide range of construction, infrastructure and earth-moving tasks. It offers a good balance of operating weight, reach and power, making it versatile for general excavation, trenching, loading and site preparation.

Engine & Powertrain

• The machine is typically powered by a 6-cylinder, turbocharged, charge-air-cooled diesel engine. For example, one specification shows an engine rated at 148 hp (≈110 kW) at 2,000 rpm. Chinax+3Imimg+3Imimg+3

• The engine is built for durability in demanding conditions (heat, dust, humidity) and designed to meet emission and efficiency needs. Imimg+1

• Travel and swing motors feature heavy-duty hydrostatic/axial-piston designs for reliable movement under load. High Power Equipment Africa Pty Ltd.+1

Operating Weight & Bucket Capacity

• The operating weight for R220 variants is around 22,000 kg (≈ 22 tons) in many markets. Imimg+2Shanghai Dreamer Group Co., LTD+2

• Bucket capacities typically range around 0.95 m³ to 1.05 m³ for standard configurations. Imimg+1

Boom/Arm, Reach & Digging Depth

• The boom length for one version is 5,680 mm (~18.8 ft), with arm lengths varying (e.g., 2,000 mm to 3,900 mm) depending on configuration. perekop.net+2Equipment Ready for Use+2

• Maximum digging depths for some models reach ~6.73 m. machineryline.info+2Chinax+2

• Ground reach and loading heights are also strong, making the machine capable for a variety of job site tasks. For example, one spec lists max reach along ground ~15,120 mm (~49.6 ft) for a certain boom/arm option. Equipment Ready for Use

Hydraulic & Performance Features

• The hydraulic system uses twin variable-displacement piston pumps and advanced control systems (such as flow summation, regeneration, and mode switching) to optimise digging force, cycle time and fuel consumption. Imimg+1

• The machine offers multiple work modes (e.g., H-mode for maximum power, S-mode for balanced performance, Eco-mode for fuel savings, Breaker-mode for attachment work) to tailor performance to task. Imimg

Structure, Undercarriage & Durability

• The undercarriage and attachment structures are reinforced for durability: strengthened front attachment, heavy-duty ring body, robust track frames and boom/arm guards. Imimg

• Track shoe widths, long undercarriage options and optimized ground clearance make the machine stable on uneven terrain. For example, one spec shows ground clearance ~480 mm for a particular variant. Equipment Ready for Use

Operator Comfort & Maintenance

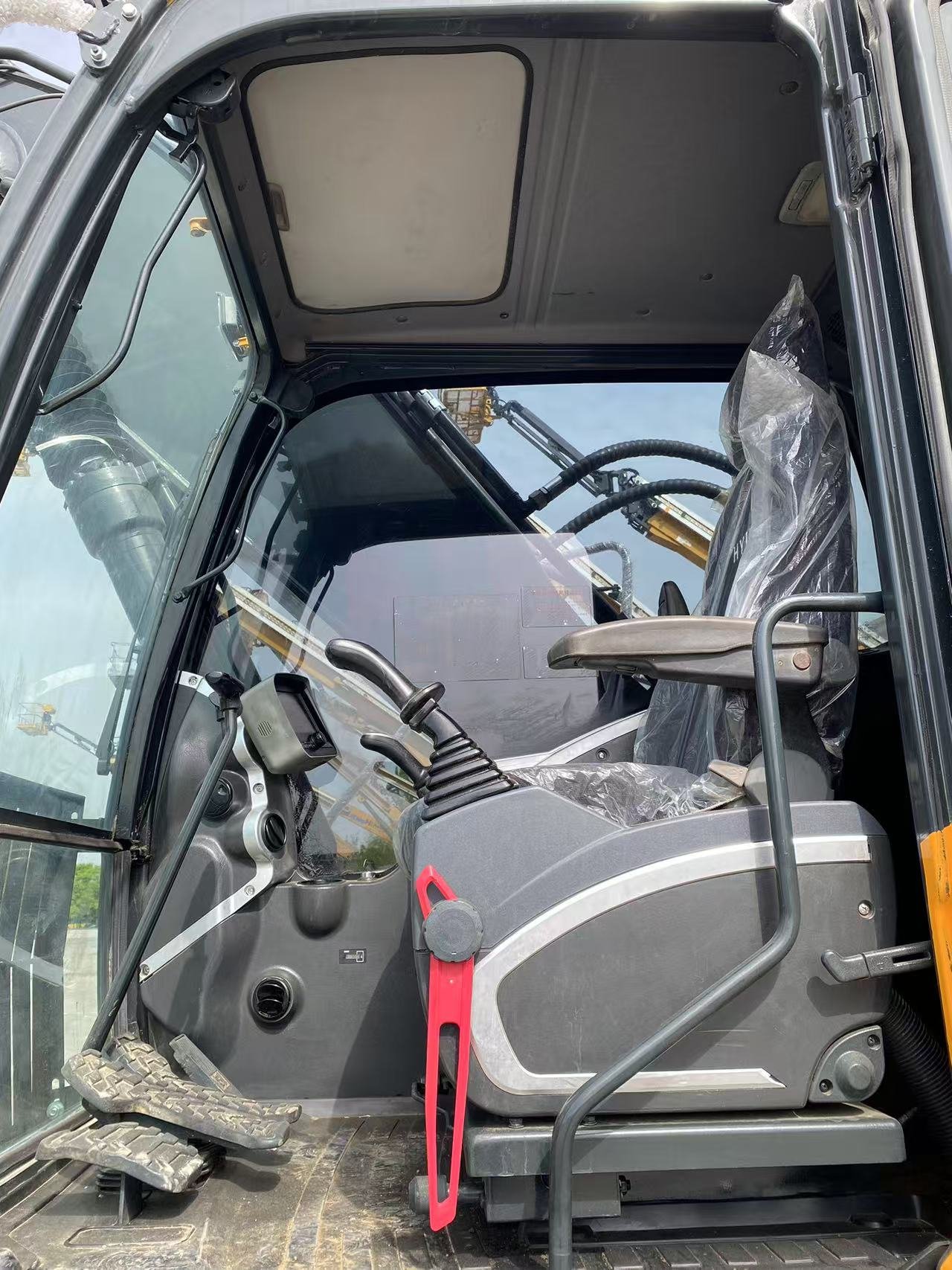

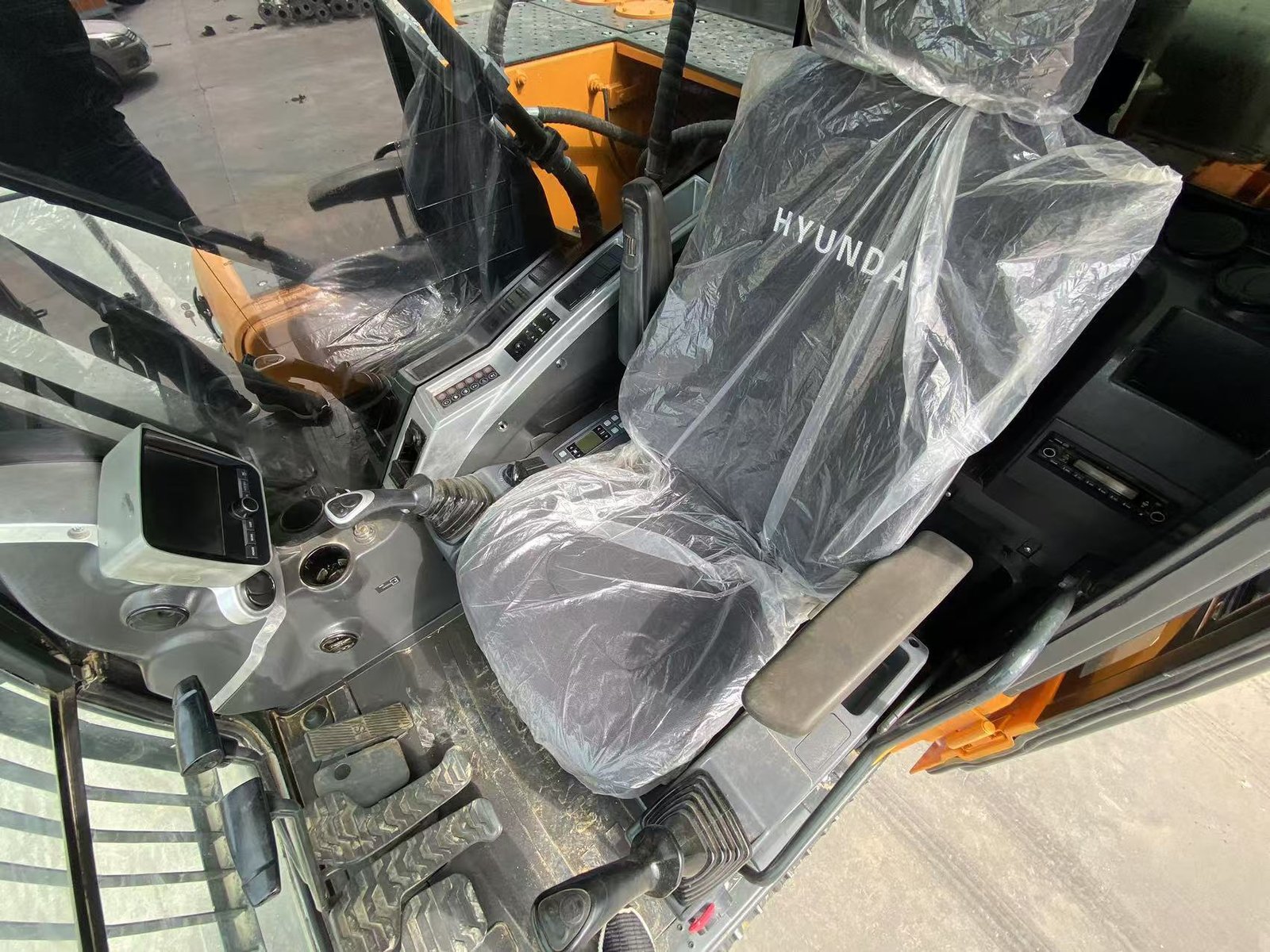

• The cab is designed to be spacious, with good all-round visibility, adjustable seating, operator friendly controls and optional air-conditioning in many configurations. Imimg

• Serviceability is emphasised: large capacity fluid tanks, easy access to service points, remote monitoring systems (such as Hyundai’s Hi-Mate) for telemetry and maintenance alerts. High Power Equipment Africa Pty Ltd.+1

Summary

In summary, the Hyundai R220 Excavator delivers a strong combination of power, hydraulic efficiency, reach and operator comfort in a mid-size package. Its robust structure and advanced hydraulics make it suitable for a broad range of tasks from general construction to heavy excavation. For buyers looking for a reliable machine in the ~20-25 ton class, the R220 offers solid value, especially where versatility and fuel efficiency are priorities.
