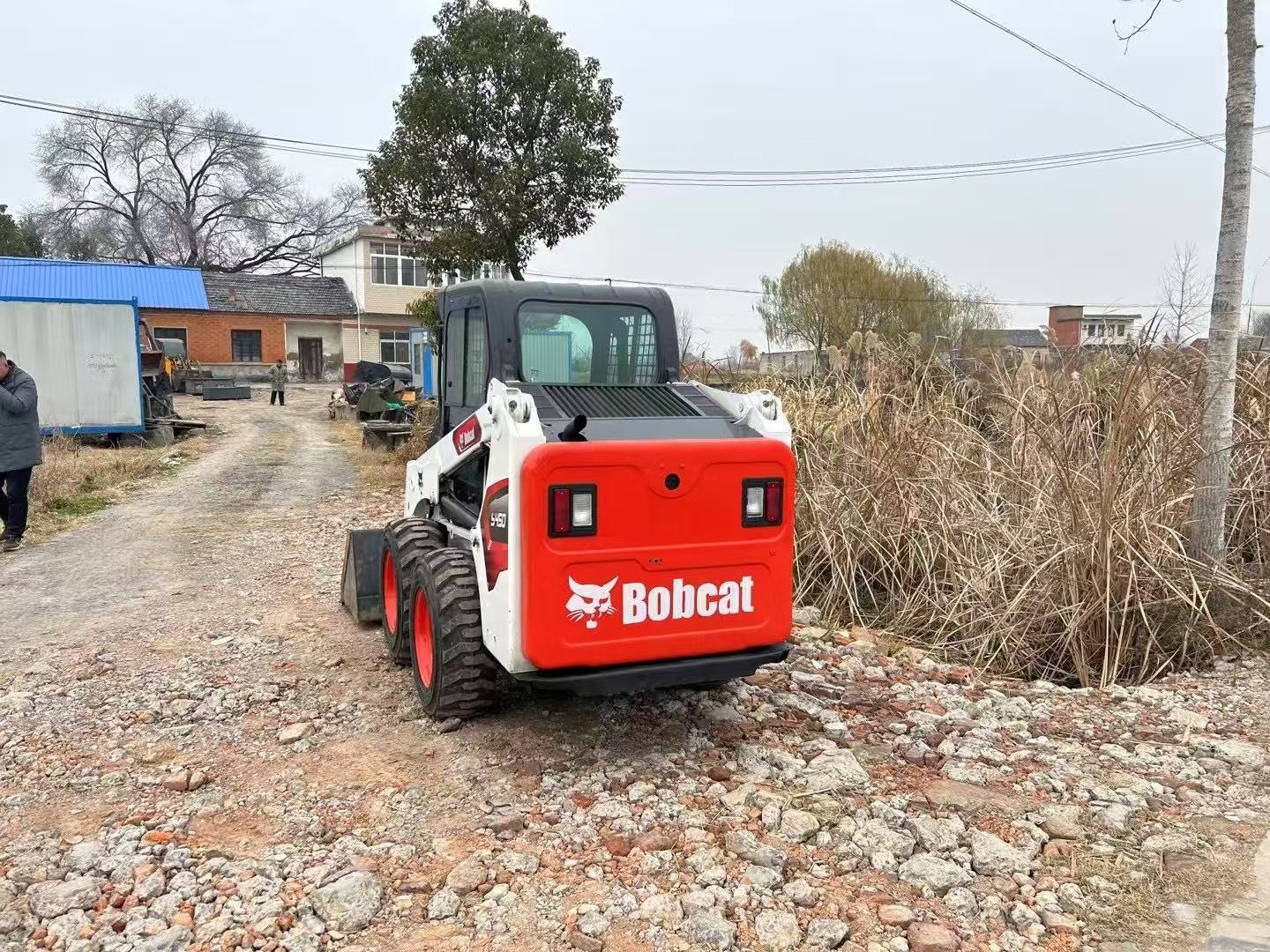

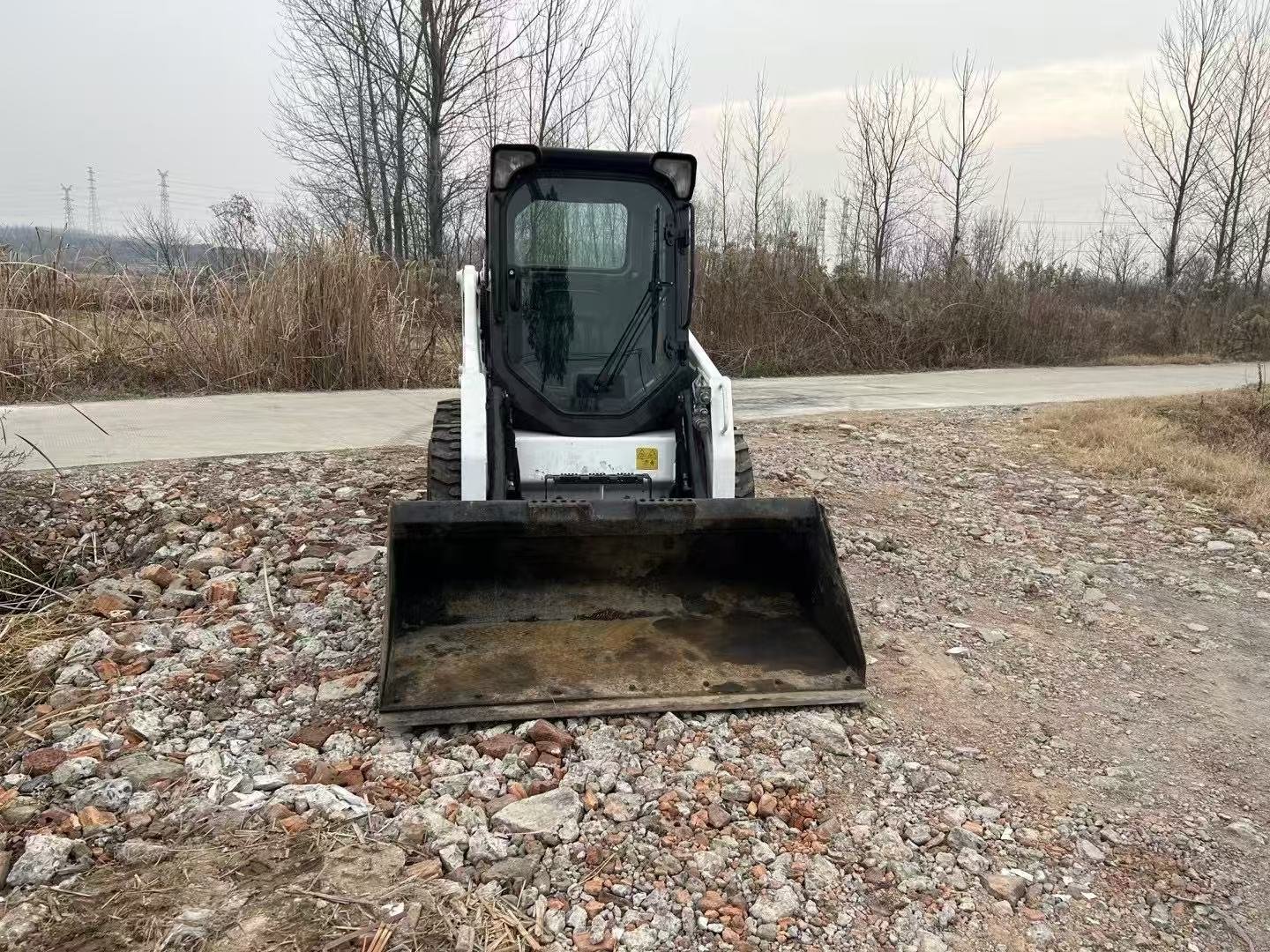

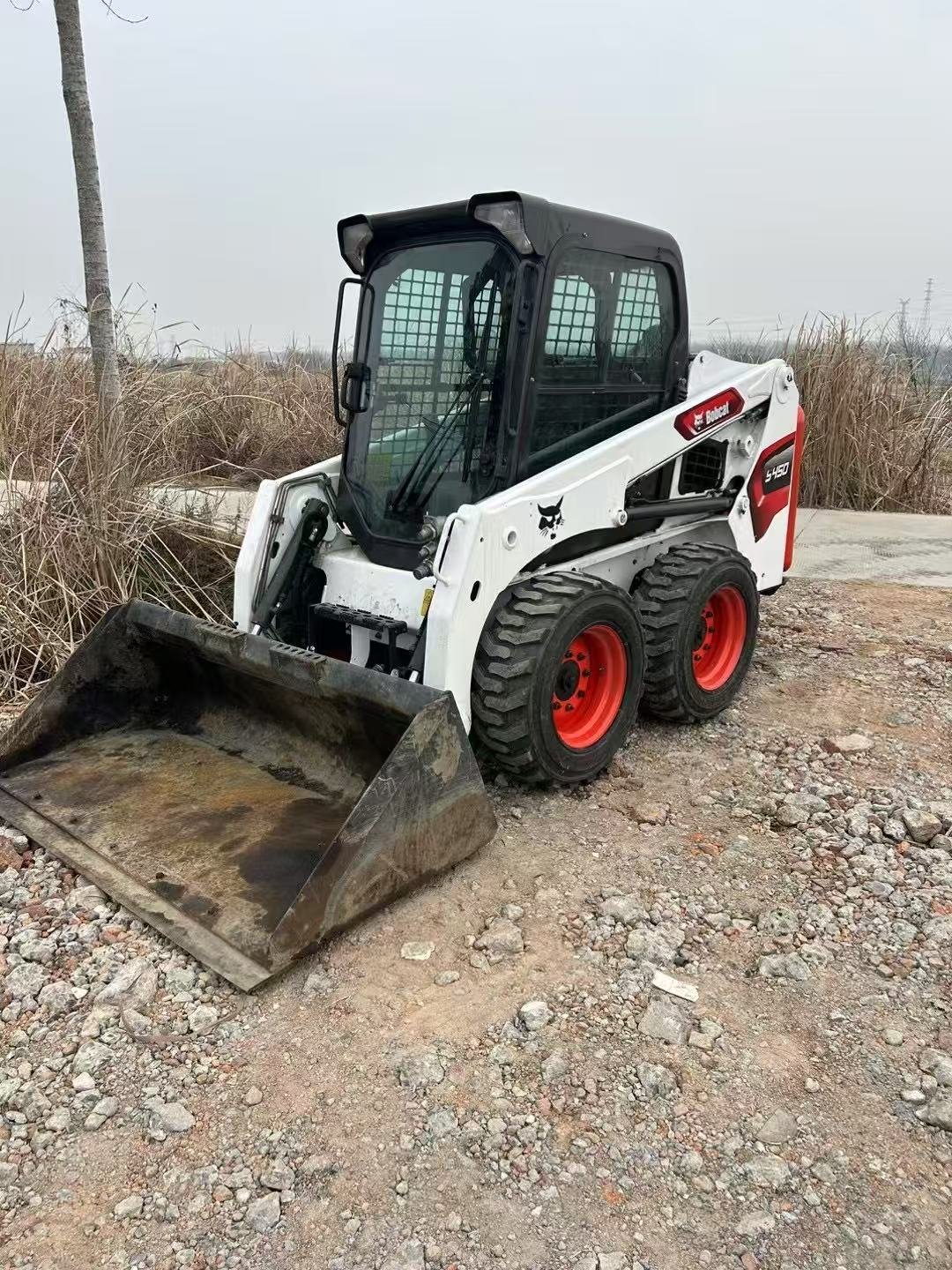

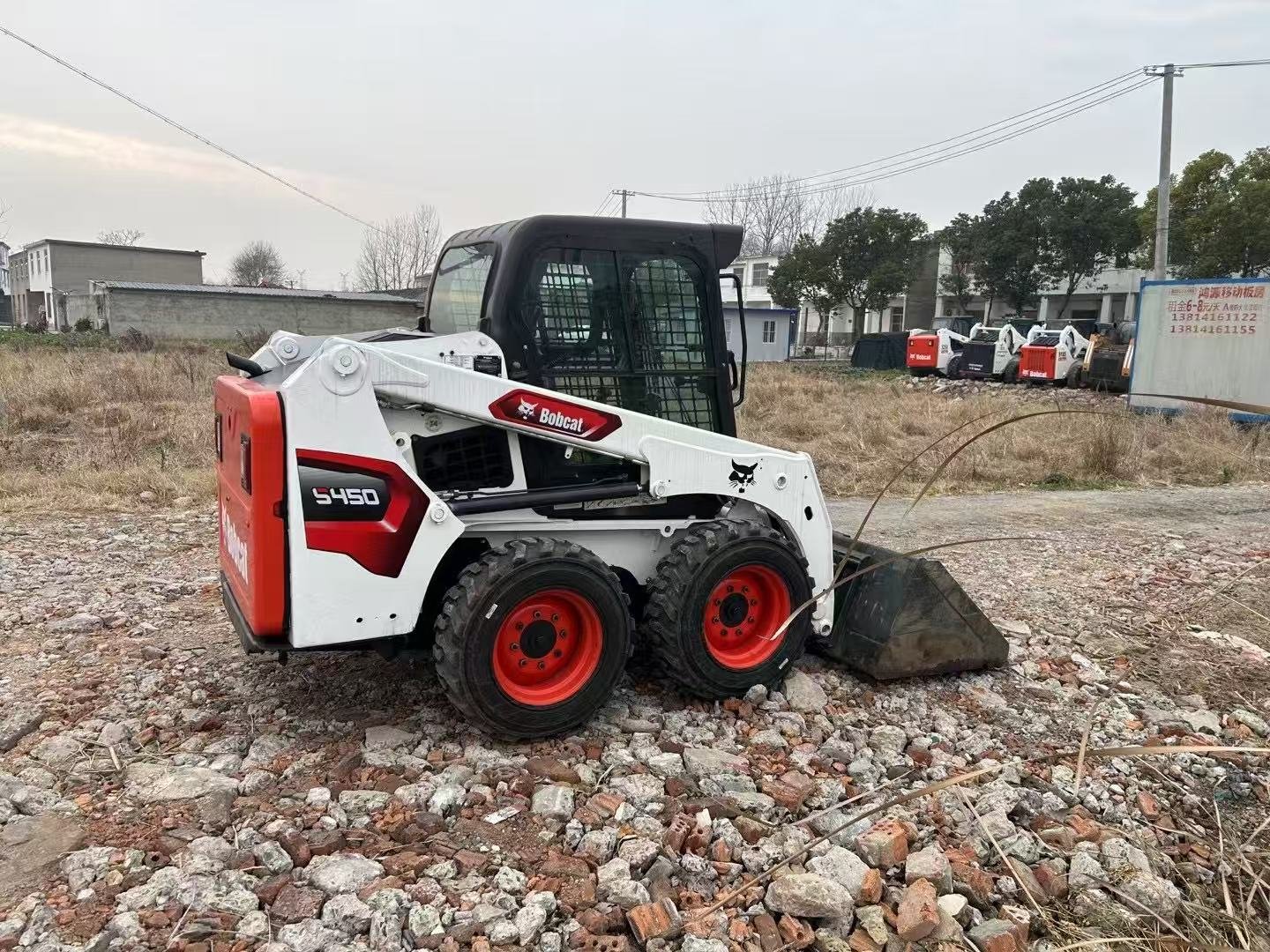

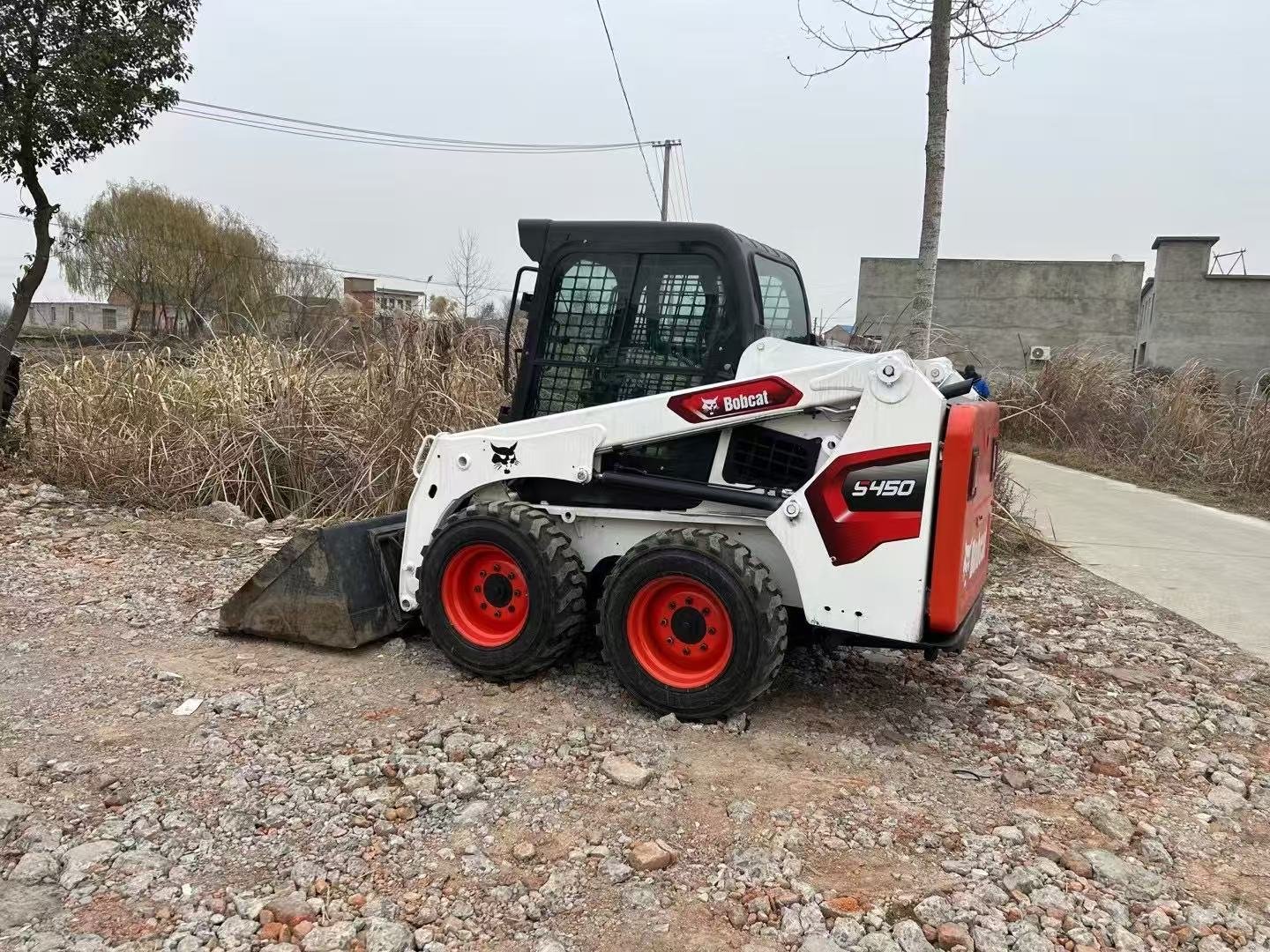

Bobcat S450 Key Specifications
The Bobcat S450 skid-steer loader is a compact, highly maneuverable machine engineered for demanding construction, landscaping, material-handling and site-work applications. According to the manufacturer, it offers “powerful hydraulic performance, leading maneuverability and fast cycle times to get the tough jobs done in less time.”
With its agile size and tight turning radius, the S450 excels in confined job sites while still delivering robust lift, reach and attachment versatility. For example, it features a radius-lift path which gives greater maximum reach at mid-range heights — ideal for tasks like dumping over a wall, back-filling or unloading from a flat-bed truck.
Key Features & Advantages
-
Compact size & agility: Its narrow width and minimized turning radius allow it to work in constrained spaces, increasing operational flexibility.
-
Powerful hydraulic system: Engineered to deliver the right balance of engine, pumps and hydraulics—this means faster cycle times and better productivity.
-
Modern engine compliance: The machine meets Tier 4 (or Stage V in some regions) emissions without the need for a Diesel Particulate Filter (DPF), simplifying maintenance and reducing downtime.
-
Excellent operator environment: The cab offers large windows for enhanced visibility, a comfortable layout with optional joystick controls, adjustable seats and cab-features (e.g., air-conditioning) to keep operators productive.
-
Attachment versatility: Standard Bob-Tach mounting system (with optional Power Bob-Tach) allows for quick switching between buckets, grapples, augers and other implements—enhancing machine utility across job types.
-
Serviceability & uptime focus: Features like one-side service access, maintenance-free chaincase, and robust cooling system protect the machine and reduce service time.
Typical Applications
Due to its size and capabilities, the S450 is well suited for:
-
General construction site work in restricted access zones
-
Landscaping, grading and material handling
-
Loading trucks and trailers, dumping material over walls or into tight spaces
-
Agricultural or utility tasks where compact size and attachment flexibility matter
-
Snow removal or seasonal clean-up tasks thanks to rapid adaptability
Summary
In summary:
The Bobcat S450 is a strong all-round compact skid-steer loader that blends power, maneuverability, visibility and **attachment flexibility **—making it a highly practical choice for operations that need a machine capable of navigating tight spots while still performing heavy-duty loader tasks.
| Specification | Value |
|---|---|
| Engine Power | 49 hp (≈ 36.5 kW) |
| Rated Operating Capacity (ISO) | 1,370 lb (≈ 620-630 kg) |
| Operating Weight | 5,370 lb (≈ 2,436 kg) |
| Tipping Load | 2,740 lb (≈ 1,243 kg) |
| Travel Speed | 7.6 mph (≈ 12.2 km/h) standard |
| Travel Speed (2-Speed Option) | 9.2 mph (≈ 14.8 km/h) |
| Auxiliary Hydraulic Flow (Standard) | 16.7 gpm (≈ 63.2 L/min) |
| System Relief Pressure @ Quick Couplers | 3,300 psi (≈ 22.8 MPa) |
| Fuel Tank Capacity | 14.2 gal (≈ 53.7 L) |
| Length (without attachment) | 98.4 in (≈ 2,500 mm) |
| Width | 58.6 in (≈ 1,488 mm) |
| Height (cab) | 77.8 in (≈ 1,976 mm) |
| Height to Bucket Hinge Pin | 109.5 in (≈ 2,780 mm) |
