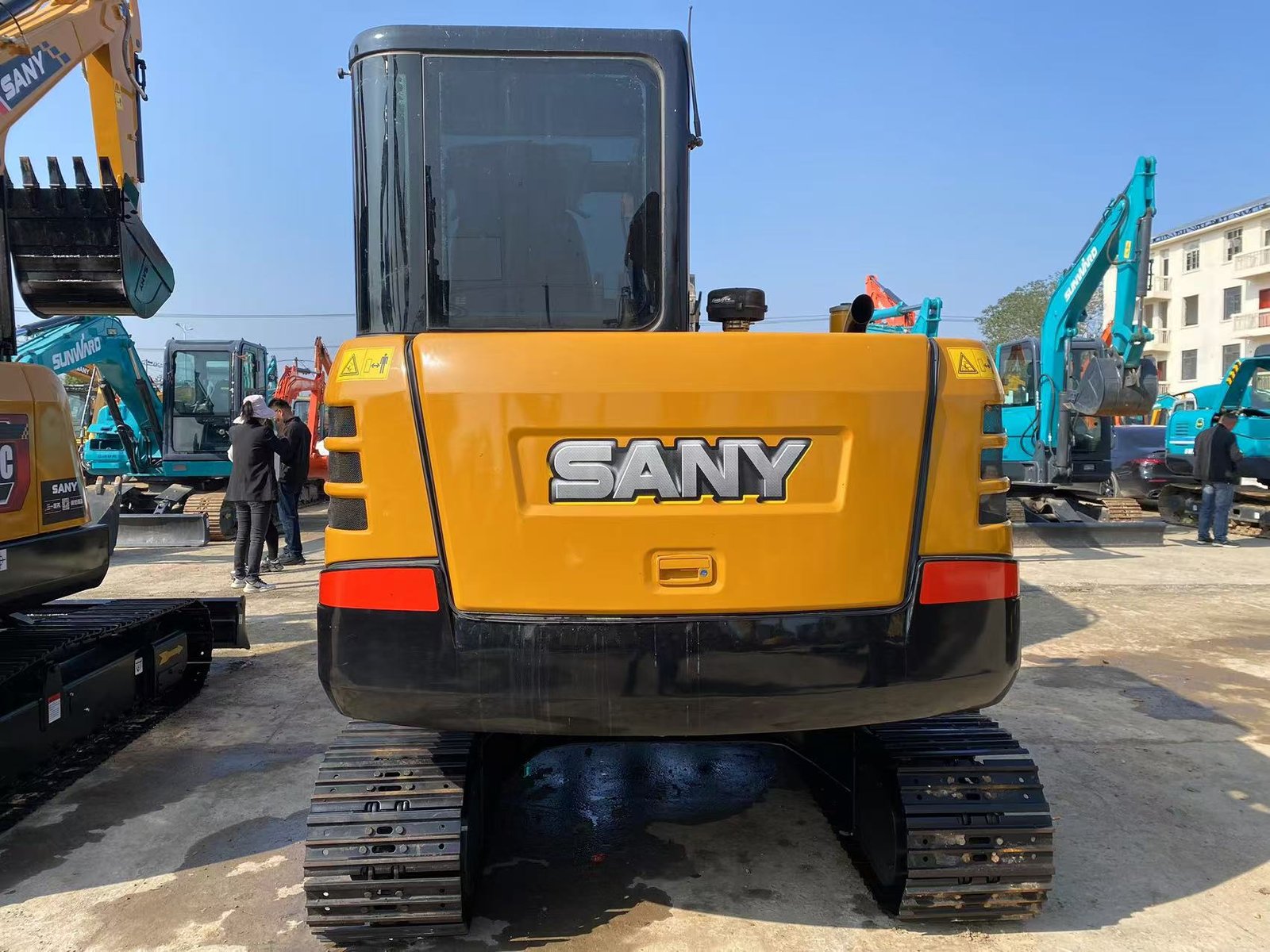

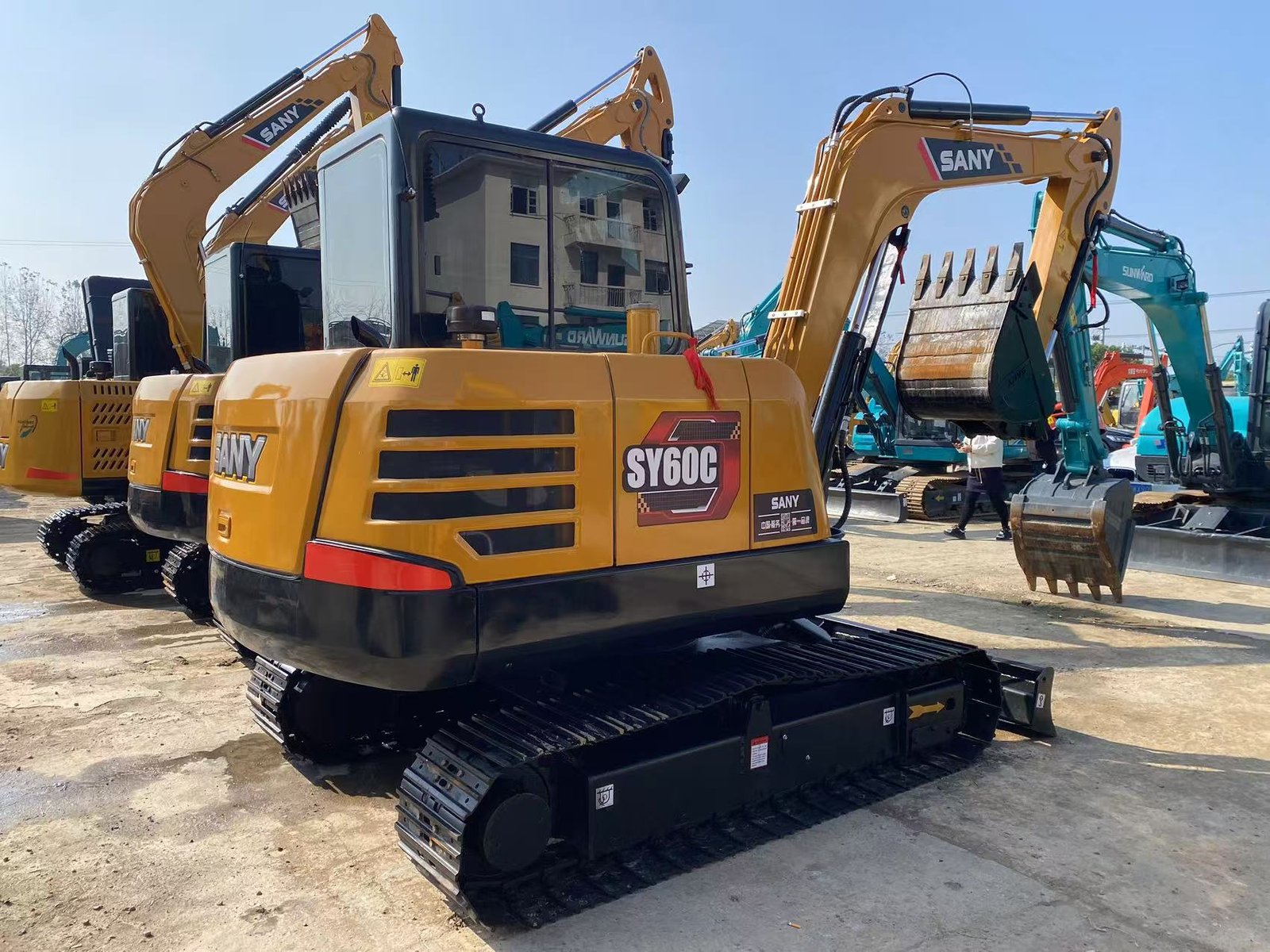

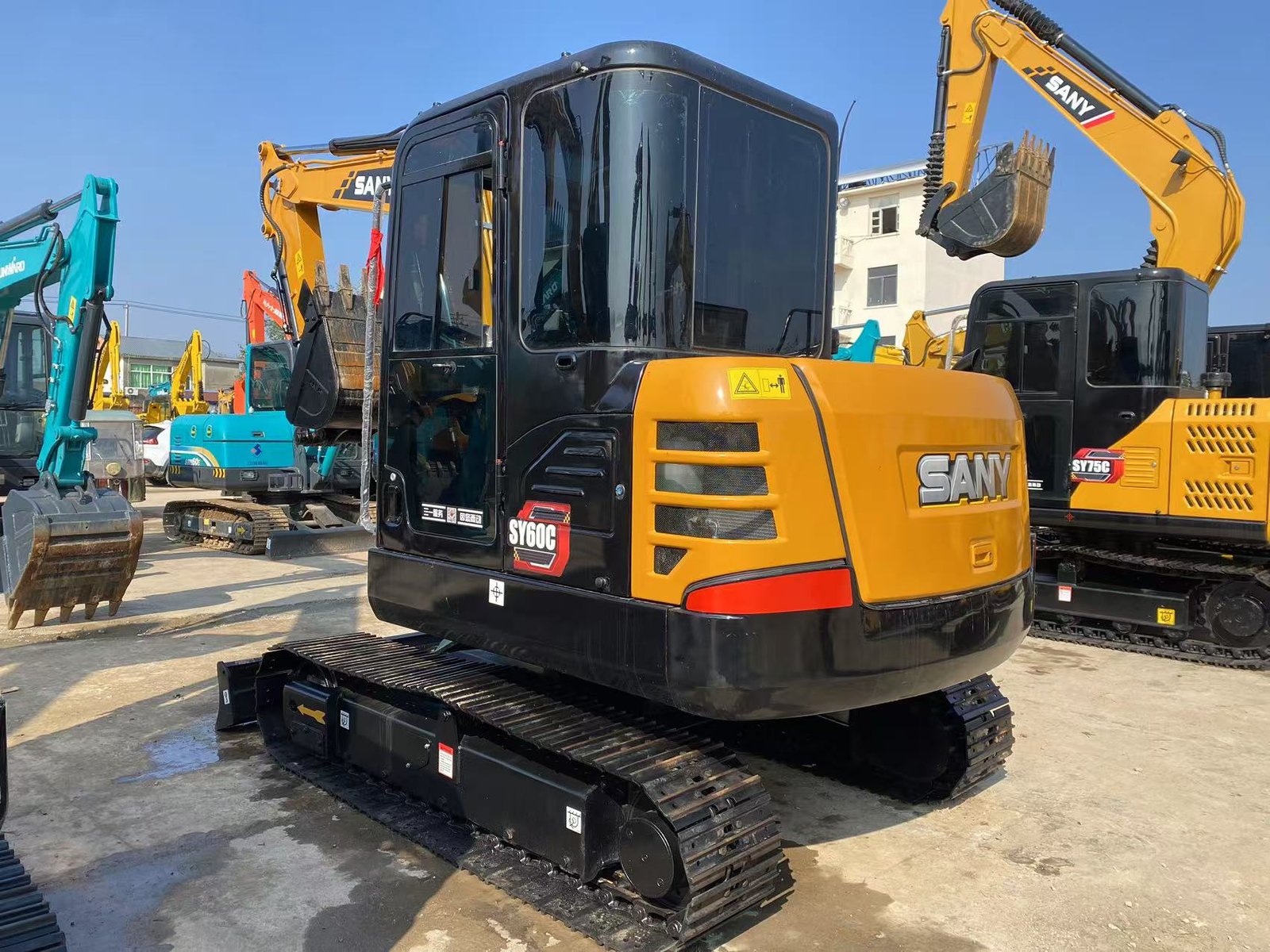

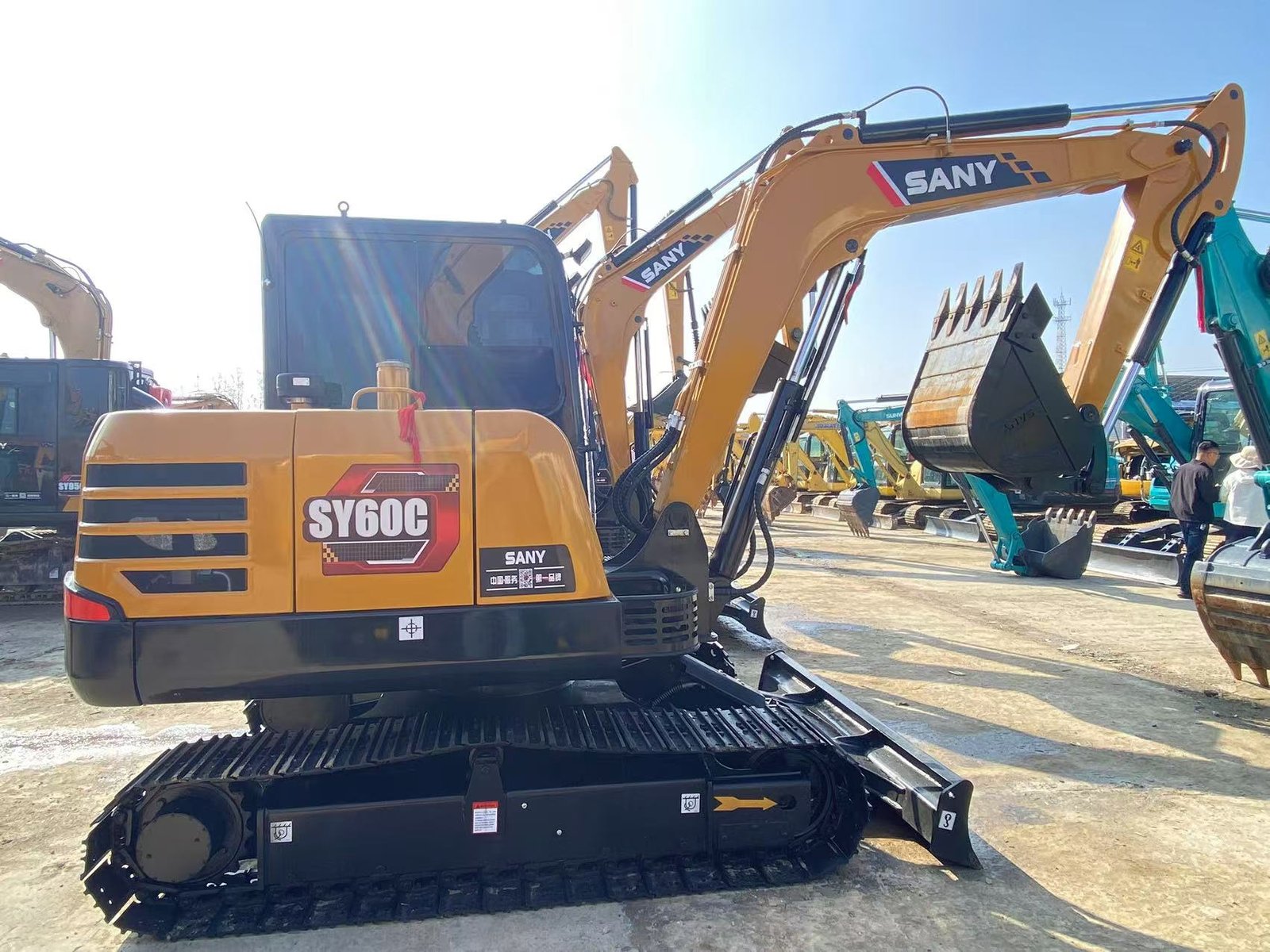

2024 Sany SY60C China Excavator 6 Ton Excavator

🏗️ SANY SY60C Excavator Specifications

Engine

• Model: Yanmar 4TNV98C

• Type: 4-cylinder, water-cooled, turbocharged diesel engine

• Rated Power: 42.4 kW (57 HP) / 2,100 rpm

• Displacement: 3.319 L

Operating Weight

• Operating Weight: 5,780 kg

Dimensions

• Overall Length: 5,800 mm

• Overall Width: 2,000 mm

• Overall Height (cab top): 2,620 mm

• Tail Swing Radius: 1,650 mm

• Ground Clearance: 385 mm

Performance

• Maximum Digging Depth: 3,820 mm

• Maximum Digging Reach: 6,100 mm

• Maximum Dumping Height: 4,150 mm

• Maximum Digging Height: 5,850 mm

• Bucket Digging Force: 43.5 kN

• Arm Digging Force: 28.8 kN

Hydraulic System

• Main Pump Type: Variable displacement axial piston pump

• Maximum Flow: 2 × 60 L/min

• System Pressure: 30.4 MPa (working equipment), 26 MPa (travel), 22 MPa (swing)

Travel & Swing

• Travel Speed (High/Low): 4.2 / 2.2 km/h

• Gradeability: 35° (70%)

• Swing Speed: 10 rpm

Fuel & Fluid Capacity

• Fuel Tank Capacity: 110 L

• Hydraulic Tank Capacity: 115 L

• Engine Oil Capacity: 10 L

Undercarriage

• Track Shoe Width: 400 mm

• Track Length: 2,510 mm

• Track Gauge: 1,600 mm
