Bobcat S630 Skid steer

Here are the specifications of the Bobcat S630 (English version) — note this is not an excavator, but a skid steer loader:

Bobcat S630 Skid Steer Loader Specifications

General Information

• Machine Type: Skid Steer Loader
• Operating Weight: approx. 3,496 – 3,553 kg
• Rated Operating Capacity (ROC): approx. 1,012 – 1,040 kg
• Tipping Load: approx. 2,023 – 2,079 kg
• Lift Height: approx. 3.1 m

Engine

• Engine Power: approx. 54.6 – 55.3 kW (≈74 HP)
• Fuel Type: Diesel
• Cooling System: Liquid-cooled

Performance

• Rated Operating Capacity: approx. 1,012 kg
• Breakout Force (Tilt): approx. 2,913 kg
• Lift Breakout Force: approx. 2,905 kg
• Operating Height: approx. 3,950 mm

Hydraulic System

• Pump Type: Gear pump
• Standard Flow: approx. 87 L/min
• High Flow (optional): approx. 115 L/min
• System Pressure: approx. 23.8 – 24.5 MPa

Travel & Mobility

• Drive Type: Hydrostatic 4WD
• Travel Speed:
  • Low: approx. 11.4 km/h
  • High: approx. 19.1 km/h (optional)

Dimensions

• Overall Length (without bucket): approx. 2,753 mm
• Overall Length (with bucket): approx. 3,474 mm
• Width: approx. 1,832 mm
• Height: approx. 2,065 mm
• Wheelbase: approx. 1,150 mm
• Ground Clearance: approx. 207 mm

Working Range

• Dump Height: approx. 2,410 mm
• Reach at Max Height: approx. 599 mm
• Turning Radius: approx. 2,119 mm

Features

• Compact size with strong lifting capacity
• Optional high-flow hydraulics for attachments
• Advanced joystick control (SJC optional)
• Suitable for attachments (bucket, forks, auger, sweeper)
• Ideal for construction, agriculture, and material handling

🔧 Example Machines on Market

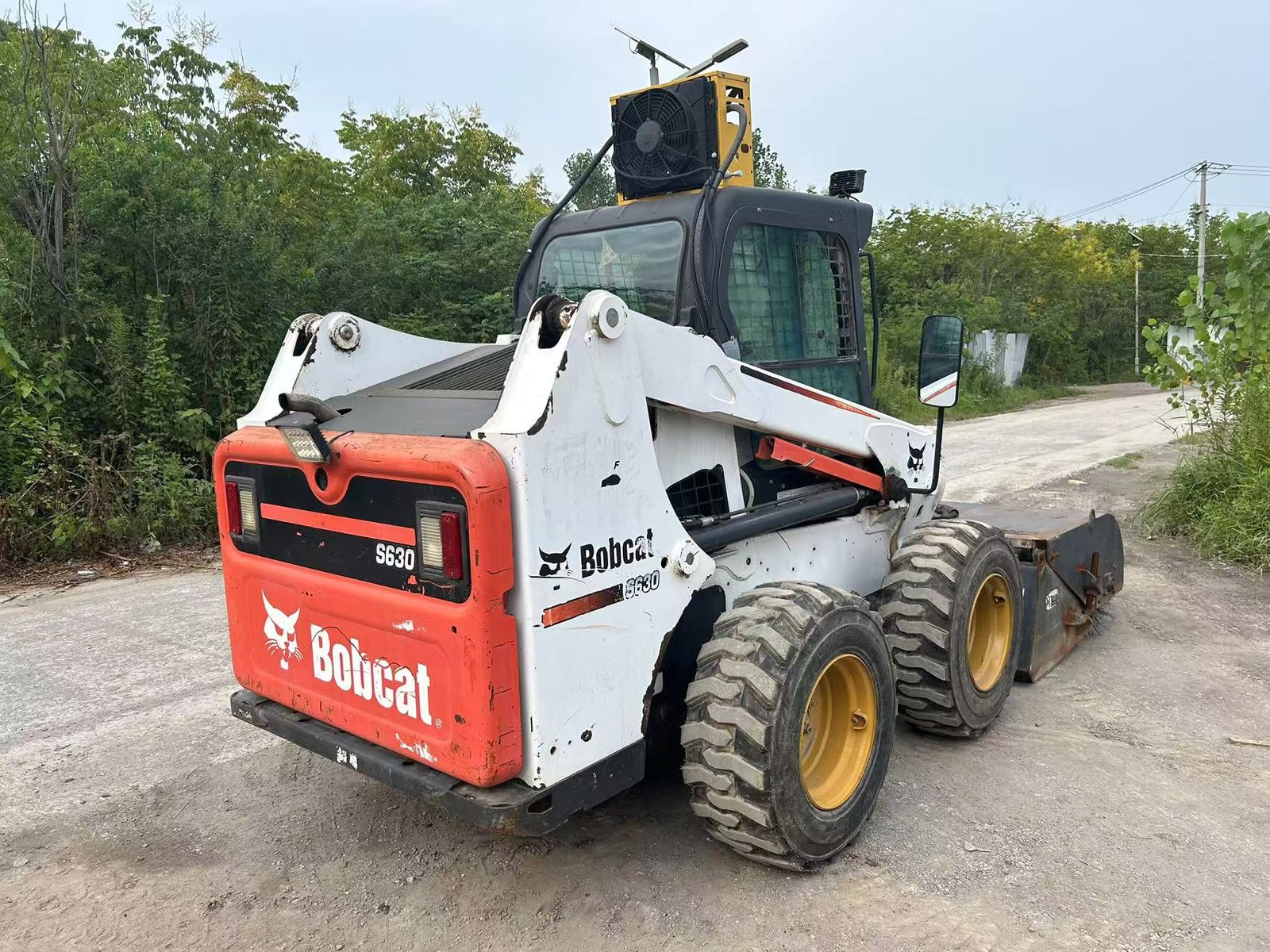

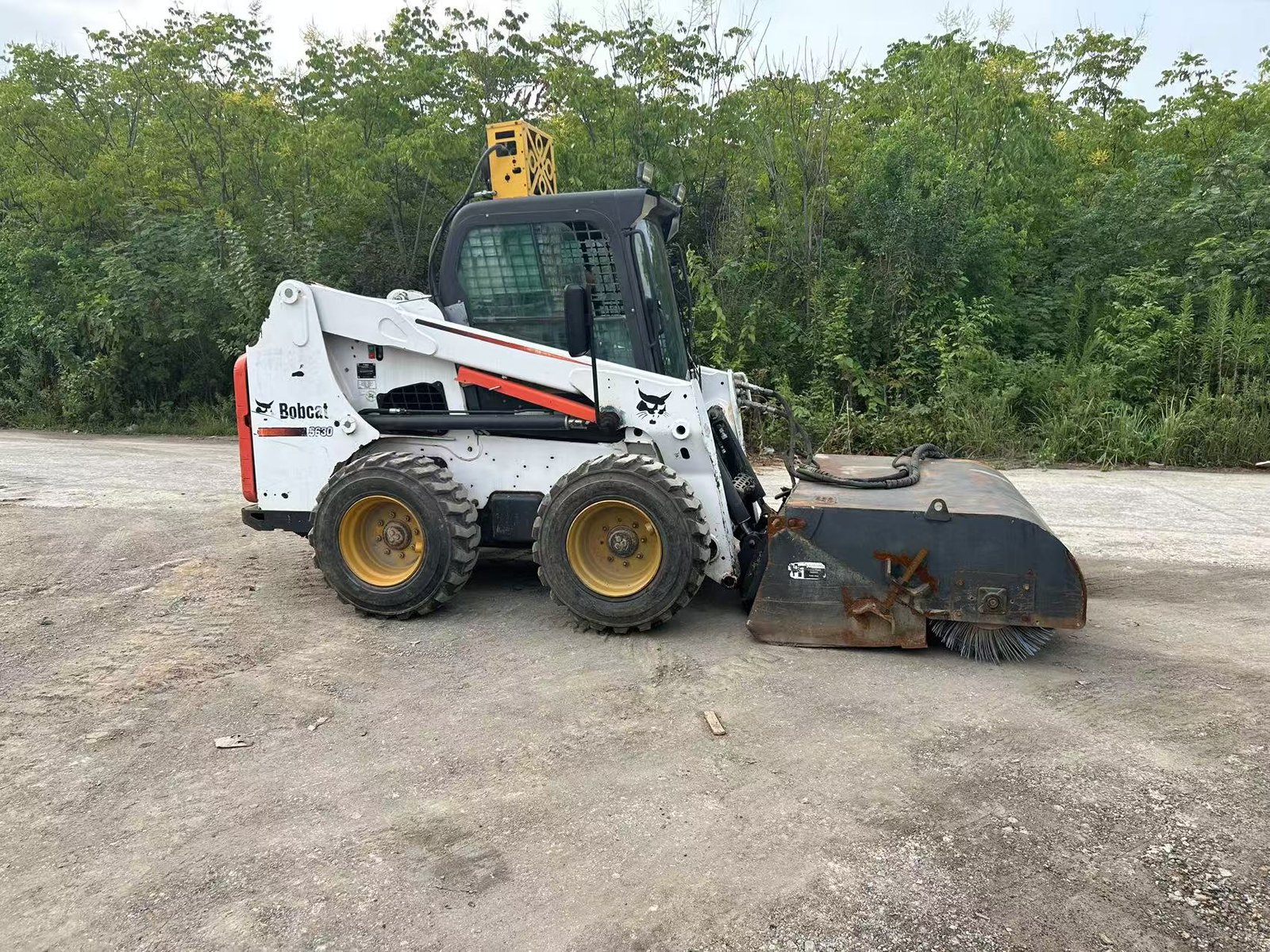

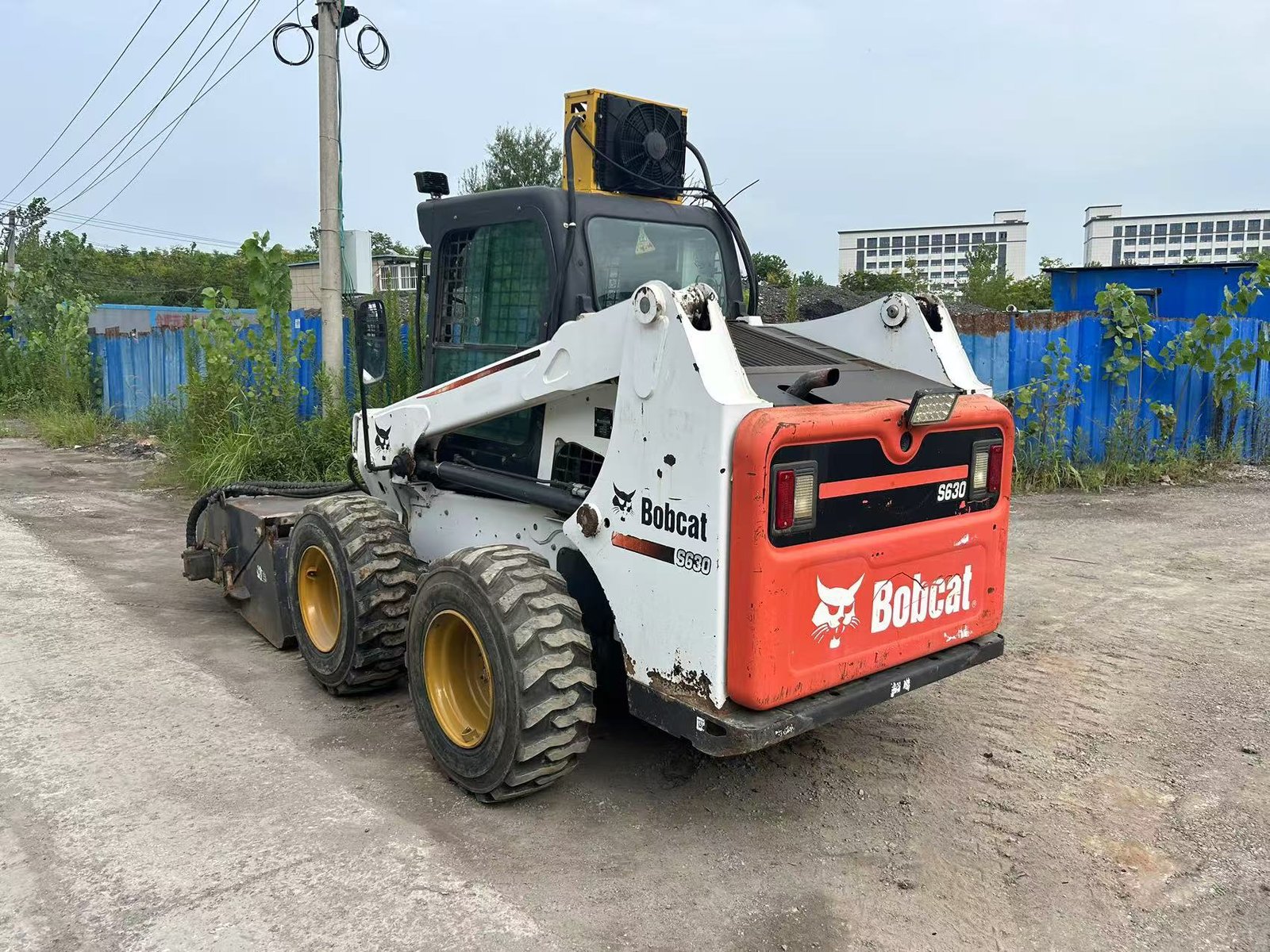

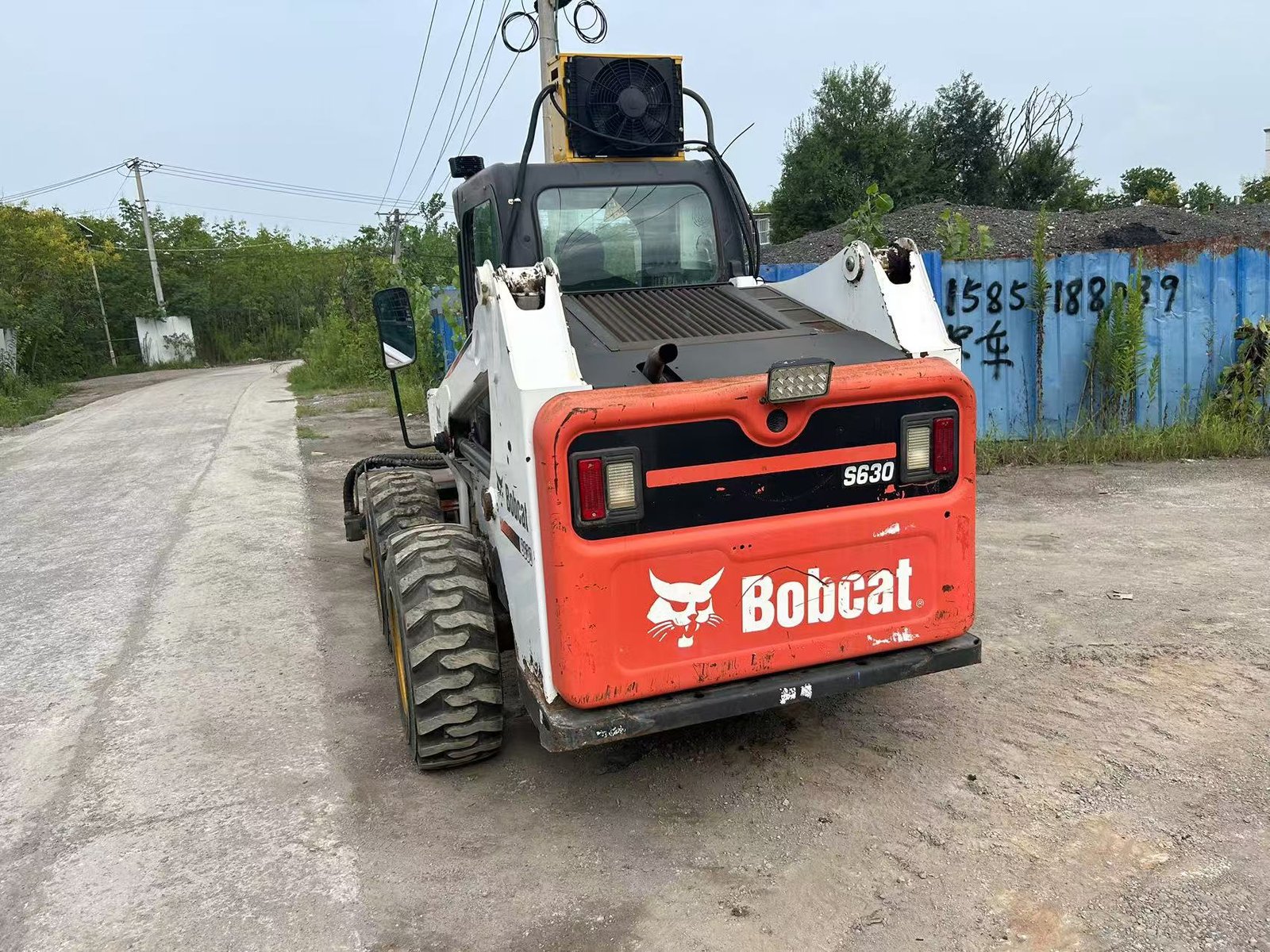

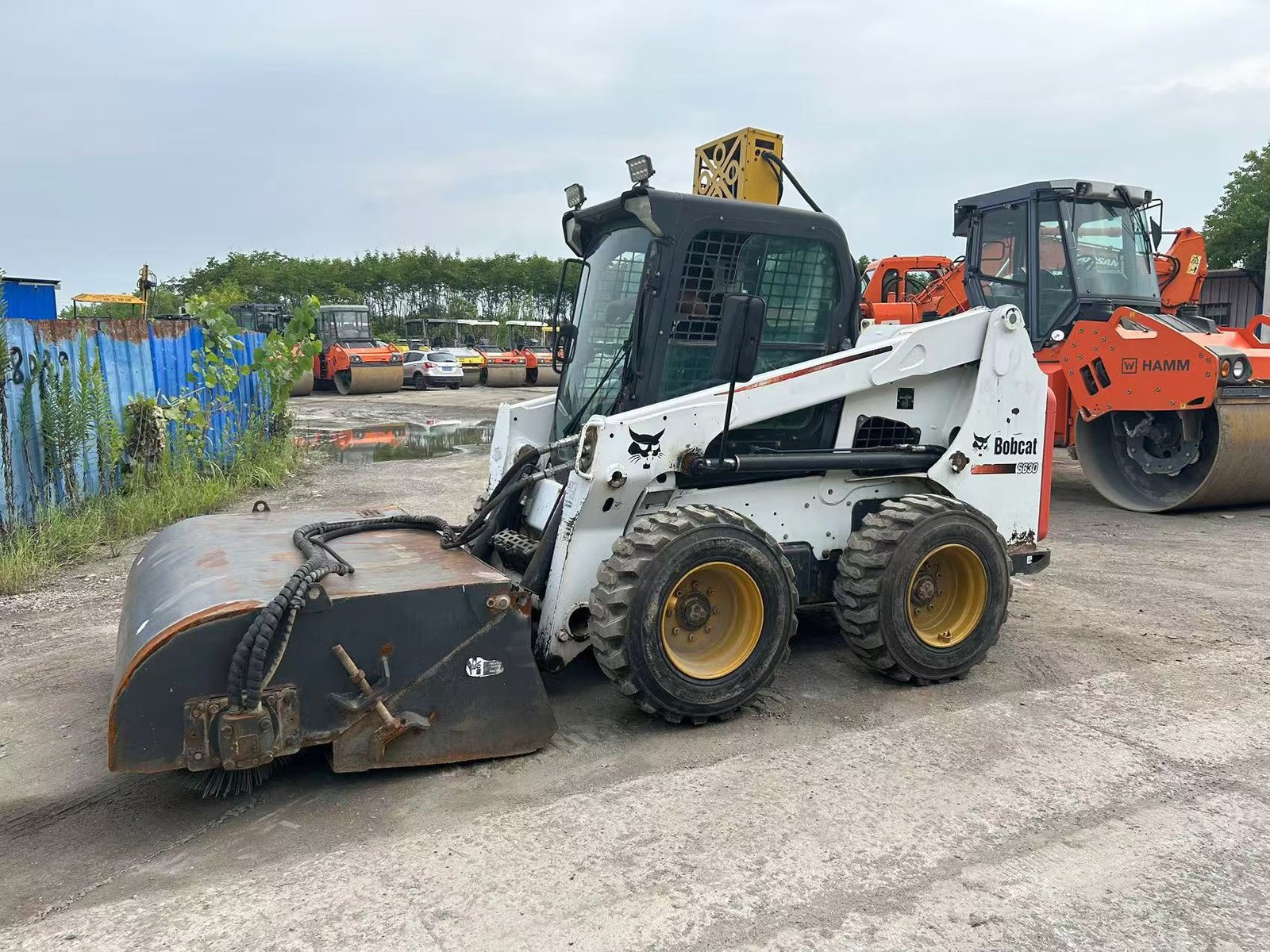

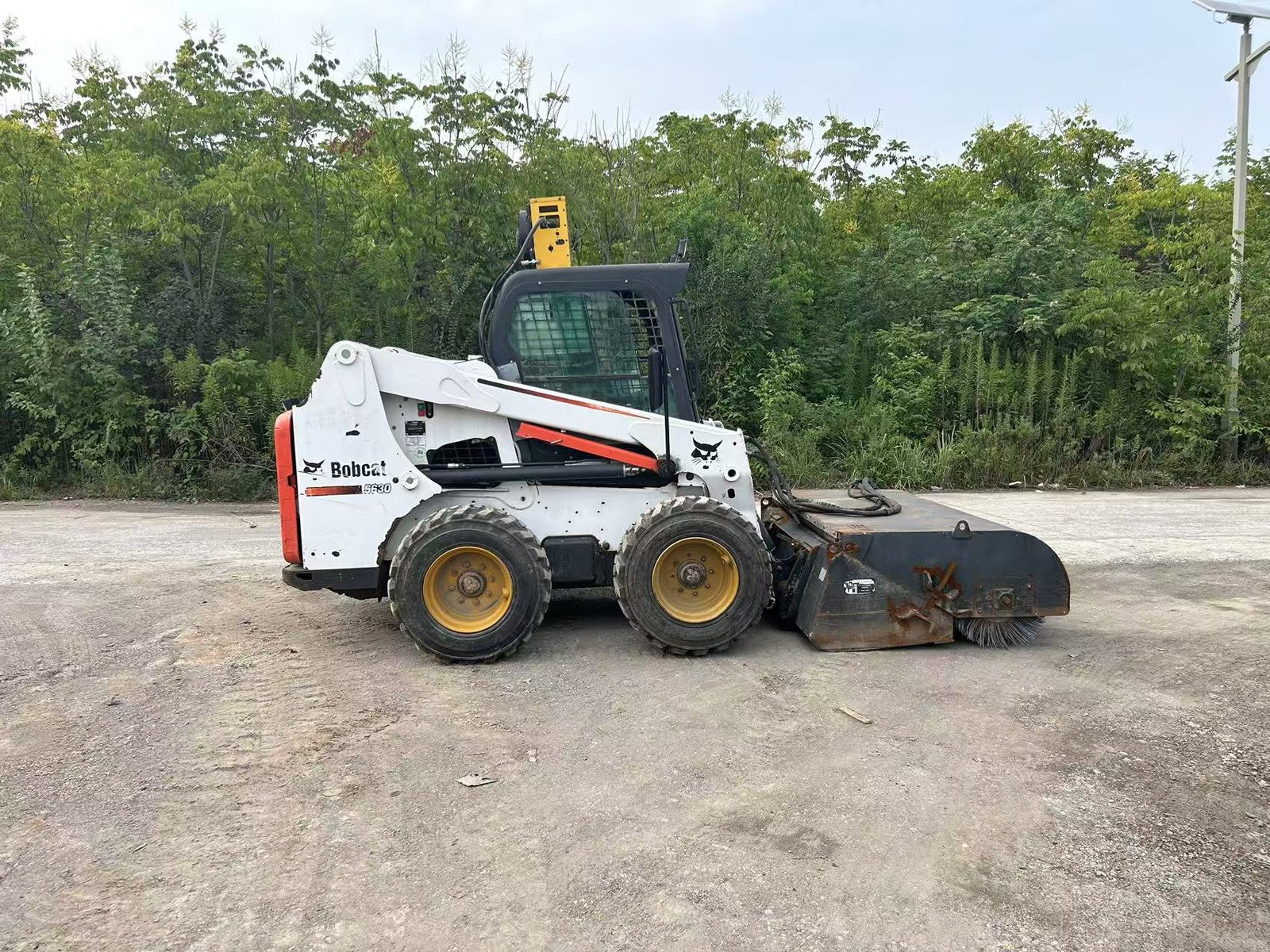

Here are some typical Bobcat S630 units (used market):
