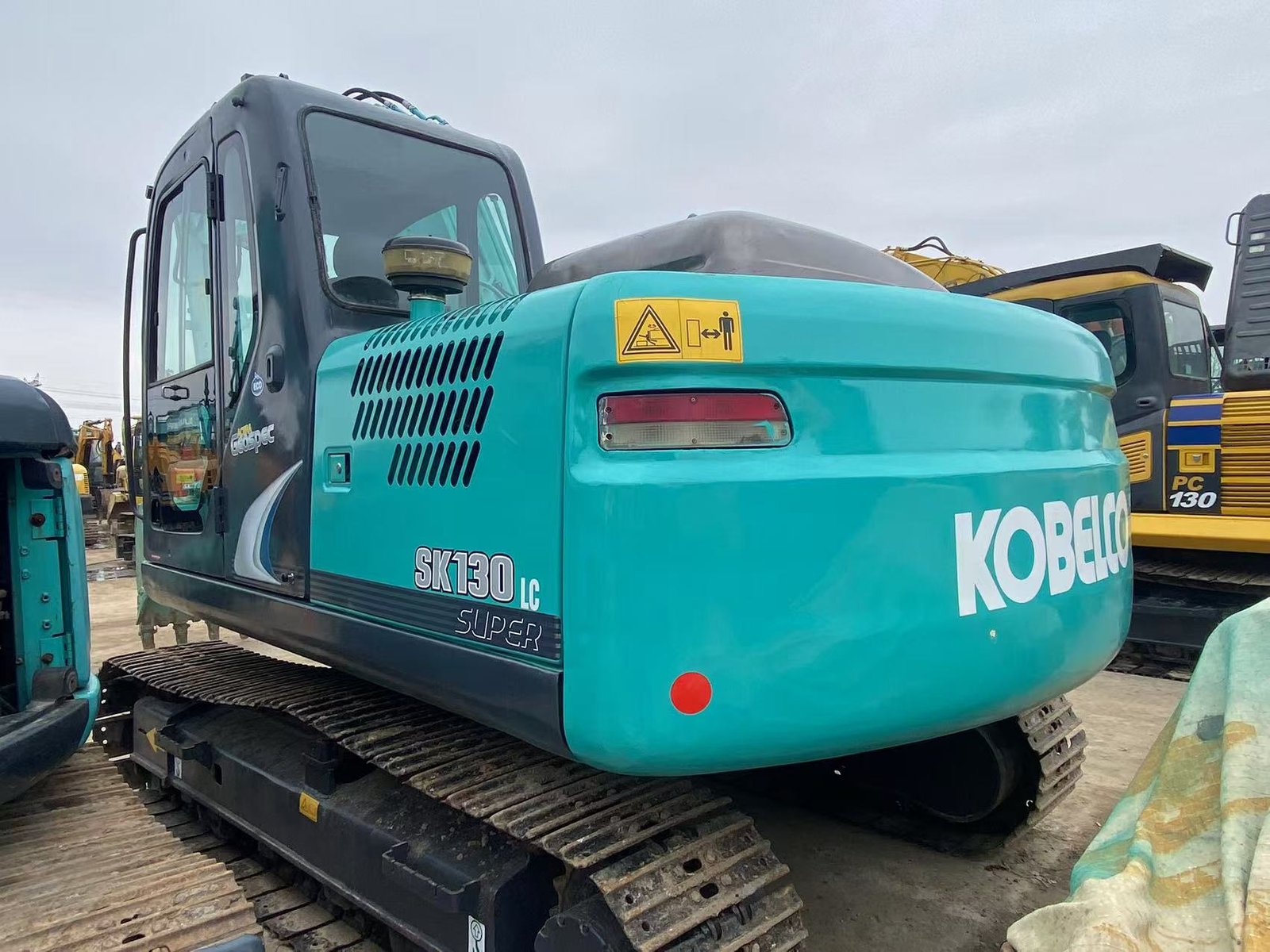

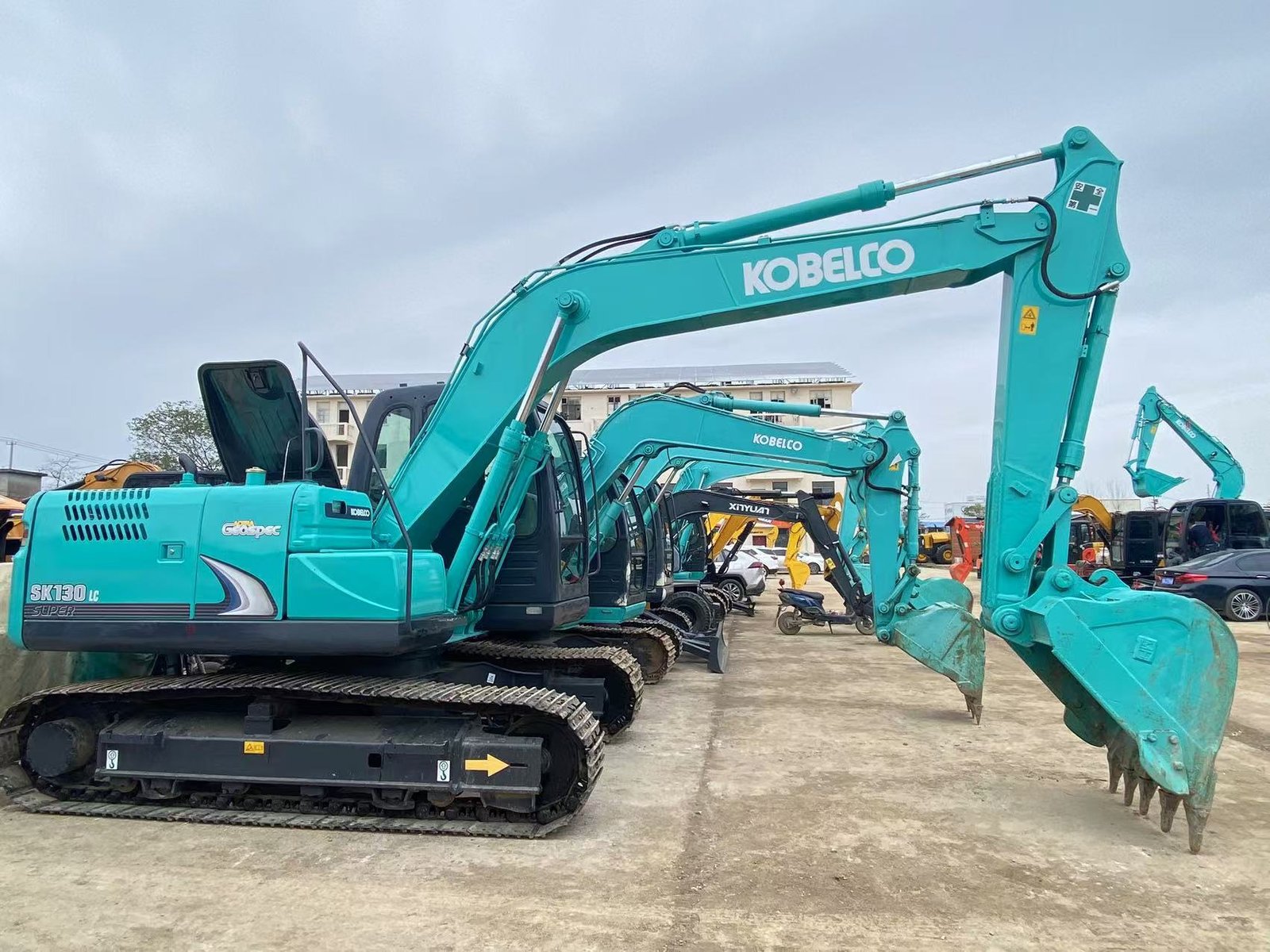

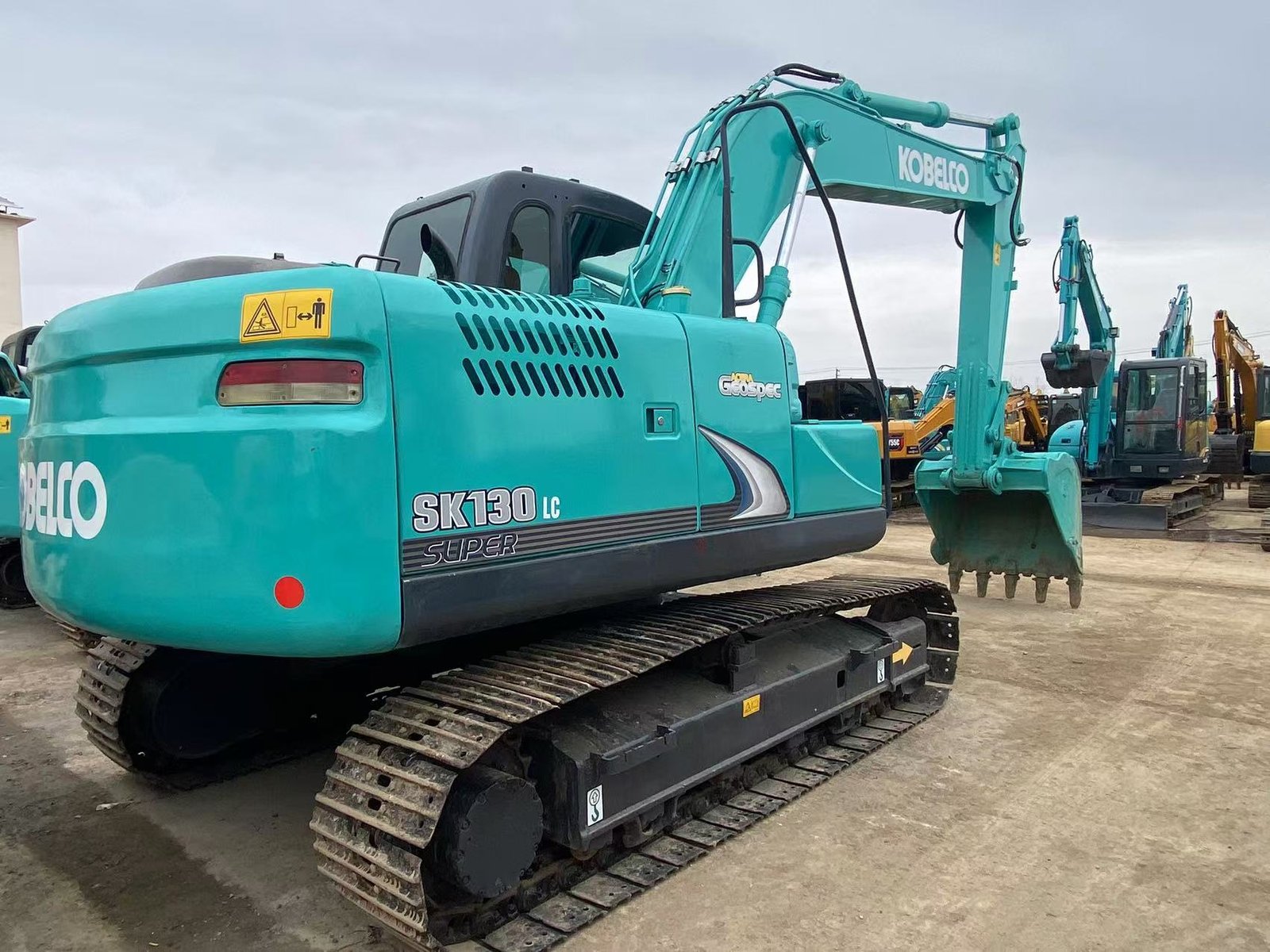

Kobelco SK130

Here are the Kobelco SK130 Excavator Specifications (English version) — commonly referring to the Kobelco SK130-10 Excavator:

Kobelco SK130 Specifications

General Information

• Operating Weight: 13,000 – 13,500 kg
• Bucket Capacity: 0.45 – 0.57 m³
• Machine Type: Hydraulic Crawler Excavator
• Application: Construction, road work, earthmoving

Engine

• Engine Model: Mitsubishi D04FR / Isuzu 4JJ1 (varies by version)
• Engine Power: 73 – 74 kW (98–100 HP)
• Rated Speed: 2,000 rpm
• Fuel Type: Diesel

Performance

• Max Digging Depth: 5,520 – 5,980 mm
• Max Digging Reach: 8,340 – 8,780 mm
• Max Dumping Height: 6,090 – 6,390 mm
• Bucket Digging Force: 90.4 kN
• Arm Digging Force: 58.1 – 64.1 kN

Hydraulic System

• Pump Type: Two variable displacement pumps + one gear pump
• Main Pump Flow: 2 × 130 L/min
• System Pressure: High-efficiency load sensing system

Travel & Mobility

• Travel Speed:
  • High: 5.8 km/h
  • Low: 3.4 km/h
• Swing Speed: 11 rpm
• Gradeability: 35°
• Drawbar Pulling Force: 142 kN

Dimensions

• Overall Length: approx. 7,590 mm
• Overall Width: approx. 2,490 mm
• Overall Height: approx. 2,800 mm
• Track Shoe Width: 500 mm
• Ground Clearance: approx. 440 mm

Features

• Fuel-efficient Japanese engine
• Powerful hydraulic system
• Comfortable cab with air conditioning
• Strong digging force and stable operation
• Suitable for breaker, grapple, and auger attachments
