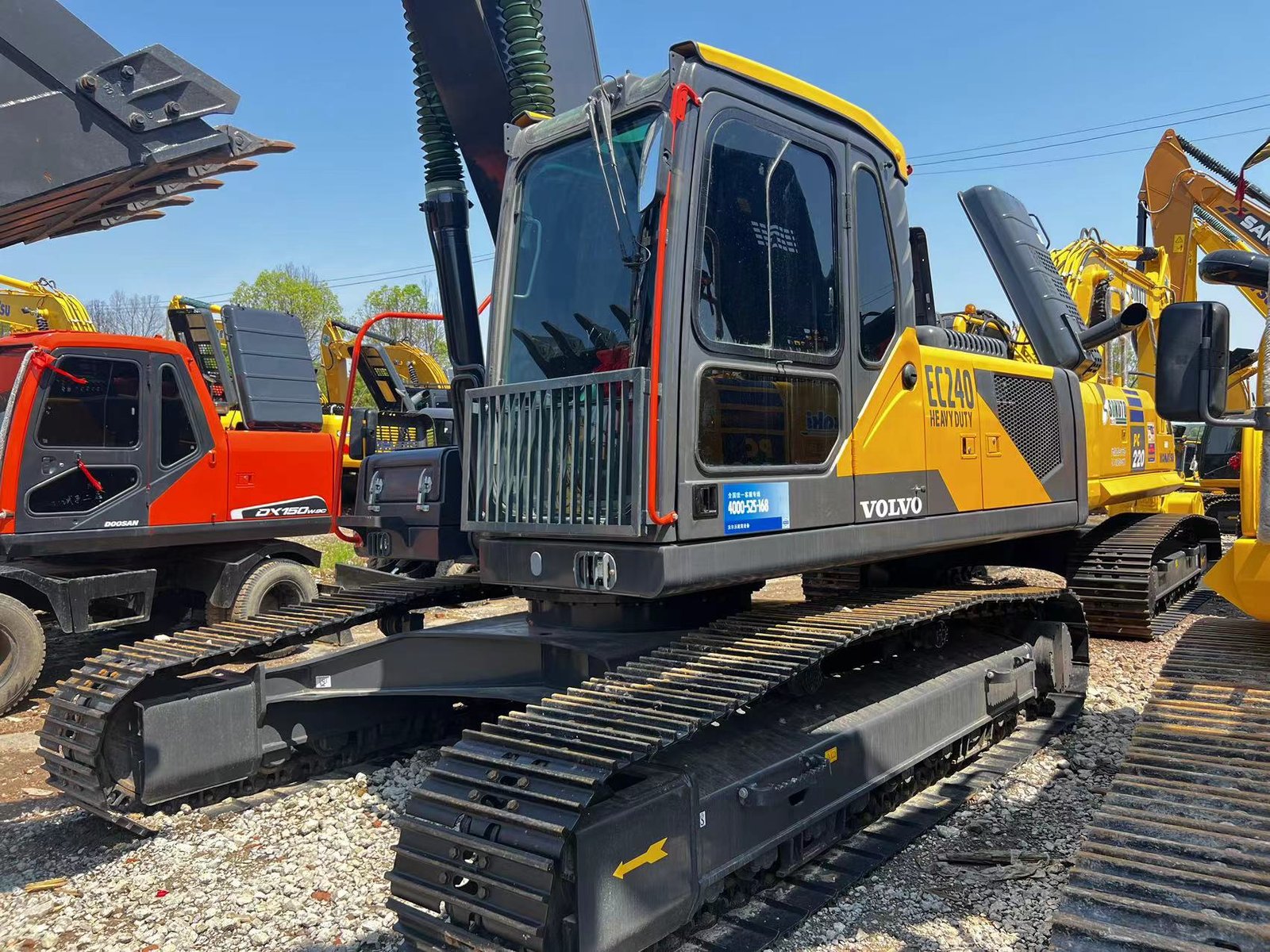

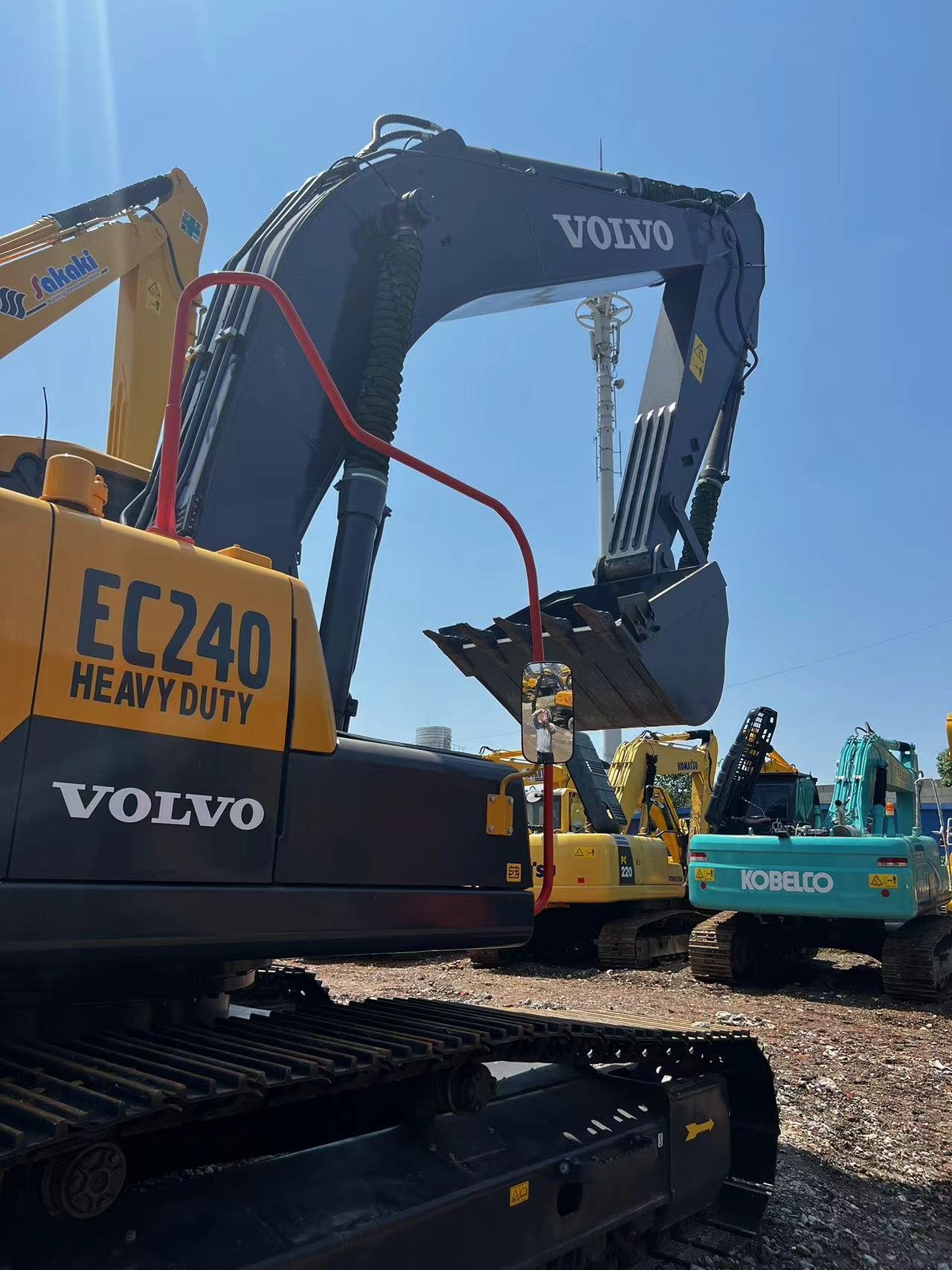

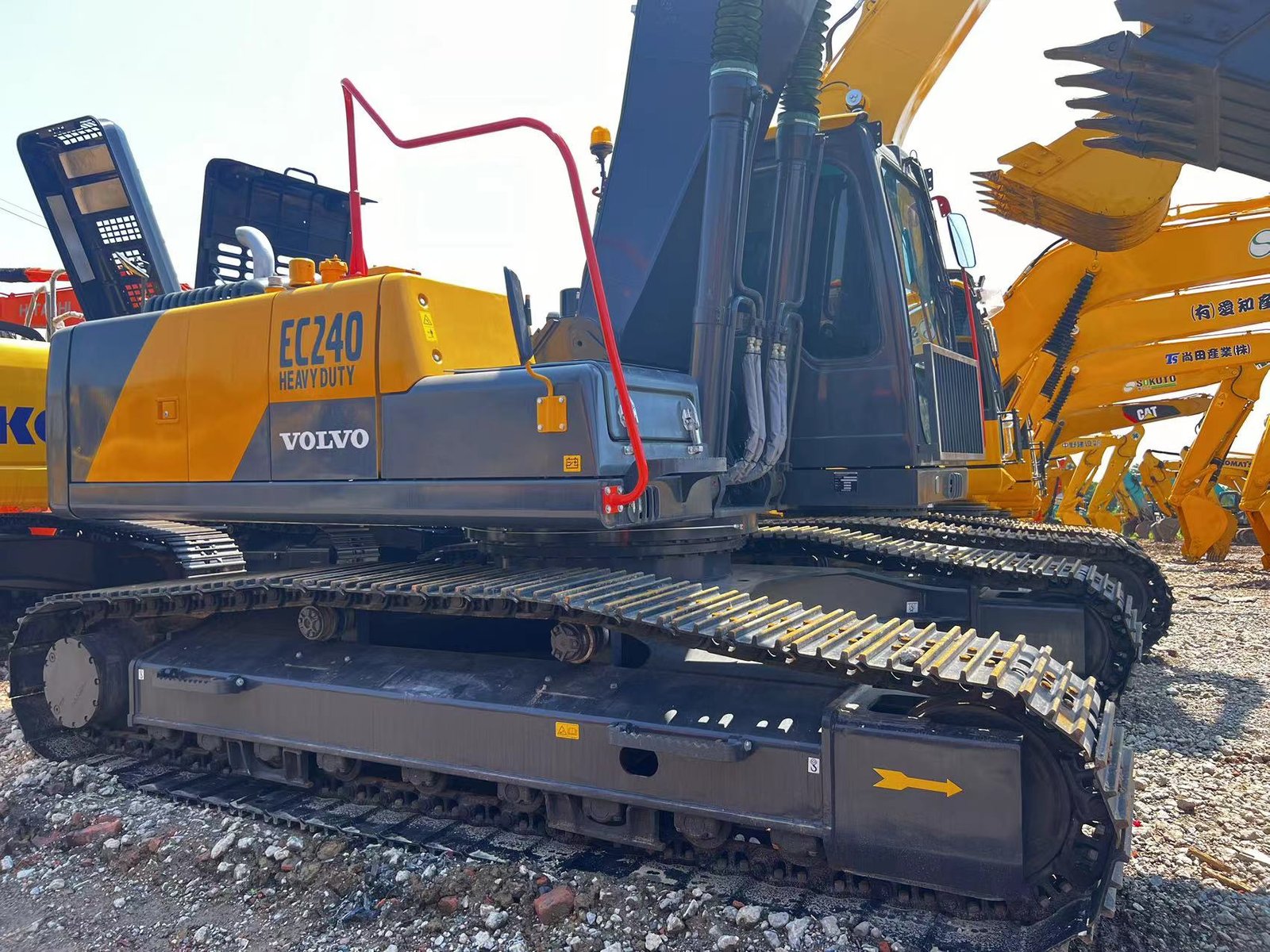

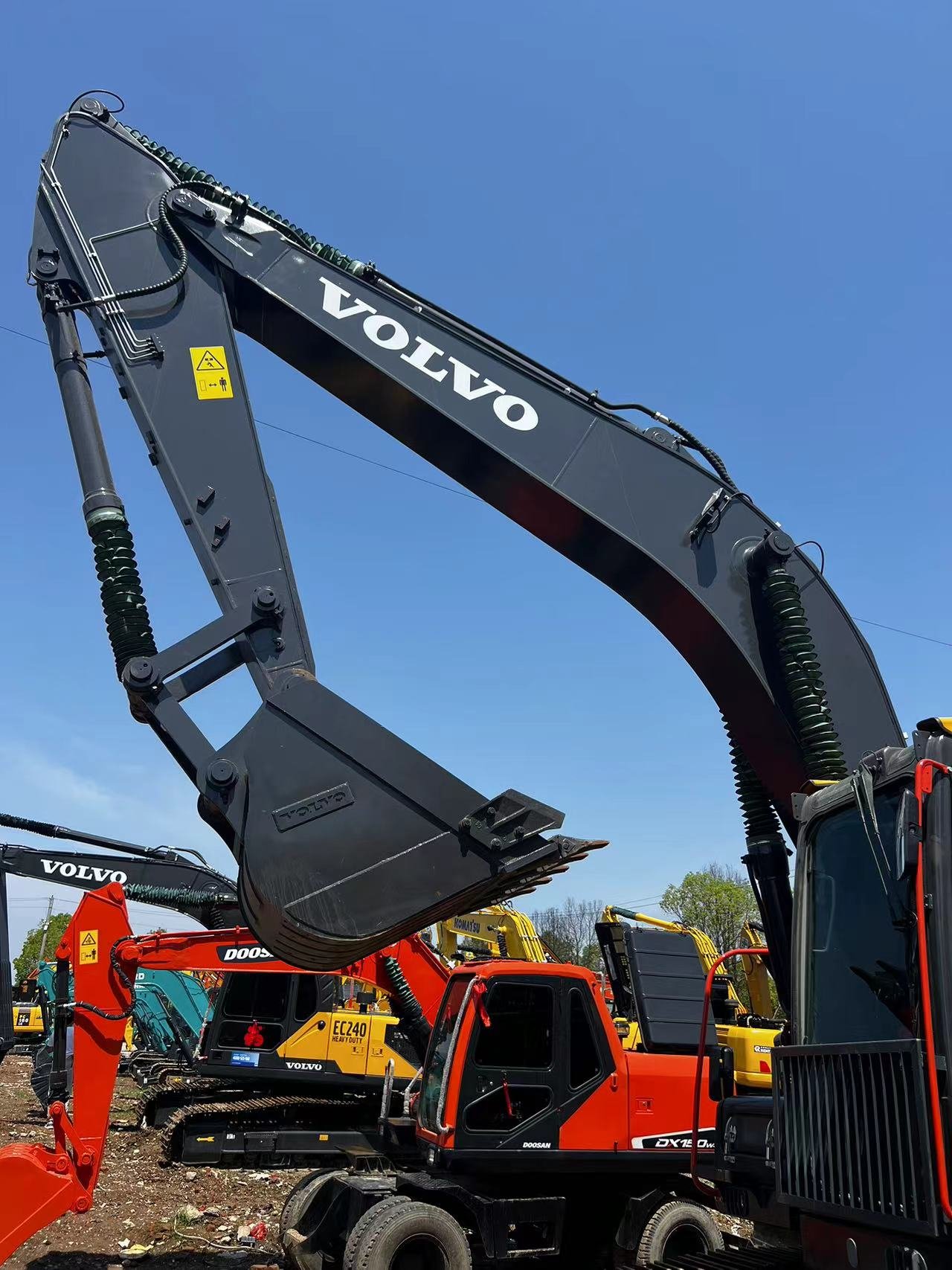

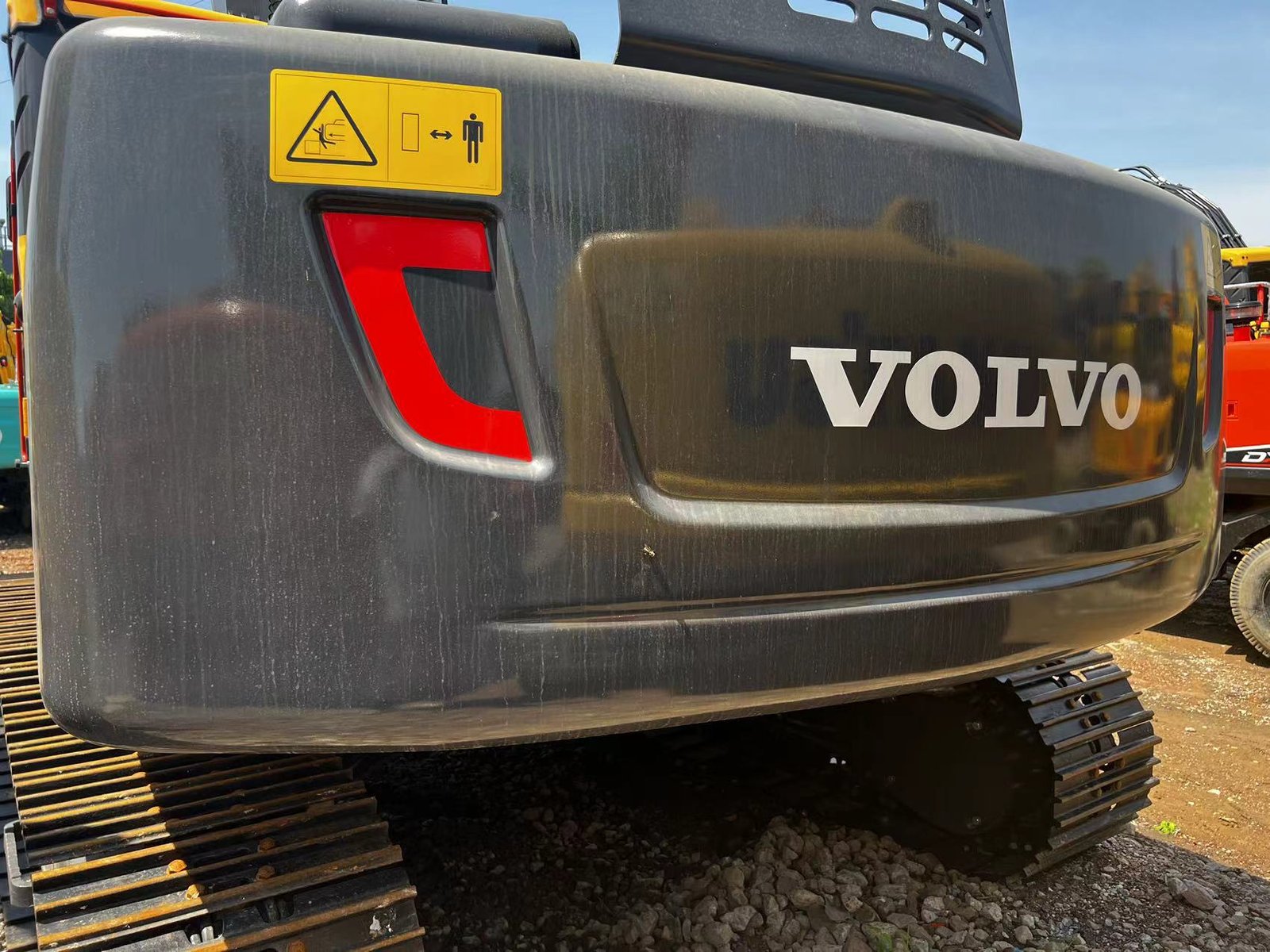

Volvo EC240

Here are the Volvo EC240 Excavator Specifications (English version) — commonly referring to the Volvo EC240 Excavator (EC240B series):

Volvo EC240 Specifications

General Information

• Operating Weight: 23,500 – 25,500 kg
• Bucket Capacity: 1.05 – 1.87 m³
• Machine Type: Hydraulic Crawler Excavator
• Application: Earthmoving, mining, road construction

Engine

• Engine Model: Cummins C8.3-C
• Engine Power: 134 kW (180 HP) @ 2,000 rpm
• Engine Type: 6-cylinder turbocharged diesel
• Fuel Tank Capacity: approx. 400 L

Performance

• Max Digging Depth: approx. 6,700 – 7,600 mm
• Max Digging Reach: approx. 10,560 – 10,700 mm
• Max Dumping Height: approx. 6,700 mm
• Bucket Digging Force: approx. 162.8 kN

Hydraulic System

• Pump Type: Twin variable displacement axial piston pumps
• Main Pump Flow: approx. 2 × 230 L/min
• System Pressure: approx. 34 MPa
• Advanced Automatic Sensing Work Mode (ACS)

Travel & Mobility

• Travel Speed:
  • High: 5.5 km/h
  • Low: 3.2 km/h
• Swing Speed: approx. 10 rpm
• Gradeability: 35°

Dimensions

• Overall Length: approx. 10,295 mm
• Overall Width: approx. 3,390 mm
• Overall Height: approx. 3,350 mm
• Track Shoe Width: 600 mm
• Ground Clearance: approx. 500 mm

Features

• Powerful Cummins engine with fuel efficiency
• Strong breakout force and lifting stability
• Comfortable Volvo cab with ergonomic controls
• Suitable for rock bucket, breaker, grapple and ripper
• Reliable machine for heavy-duty excavation work

If you mean Volvo EC240B / EC240C / EC240D specific model, I can also provide detailed parameters.
