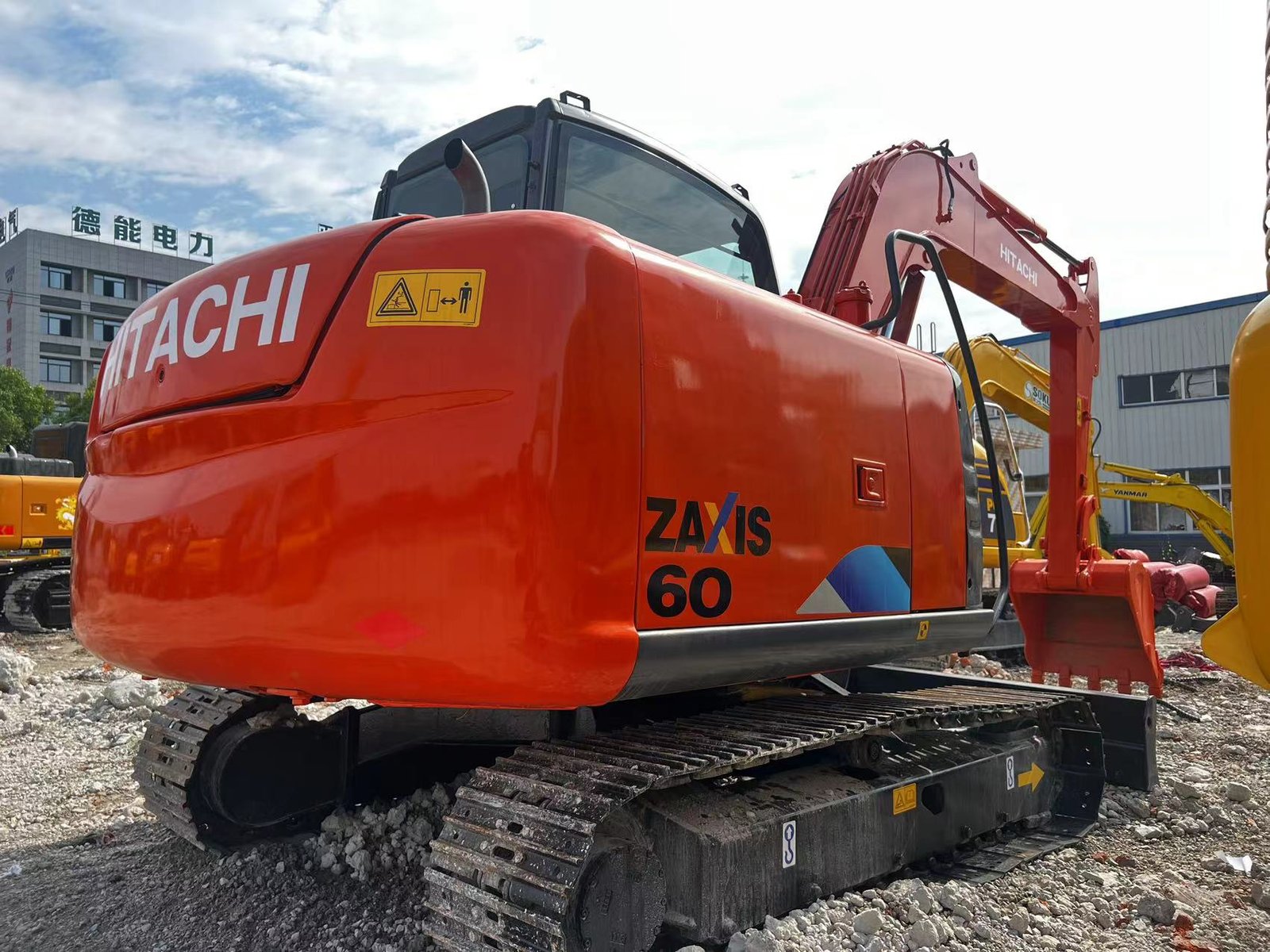

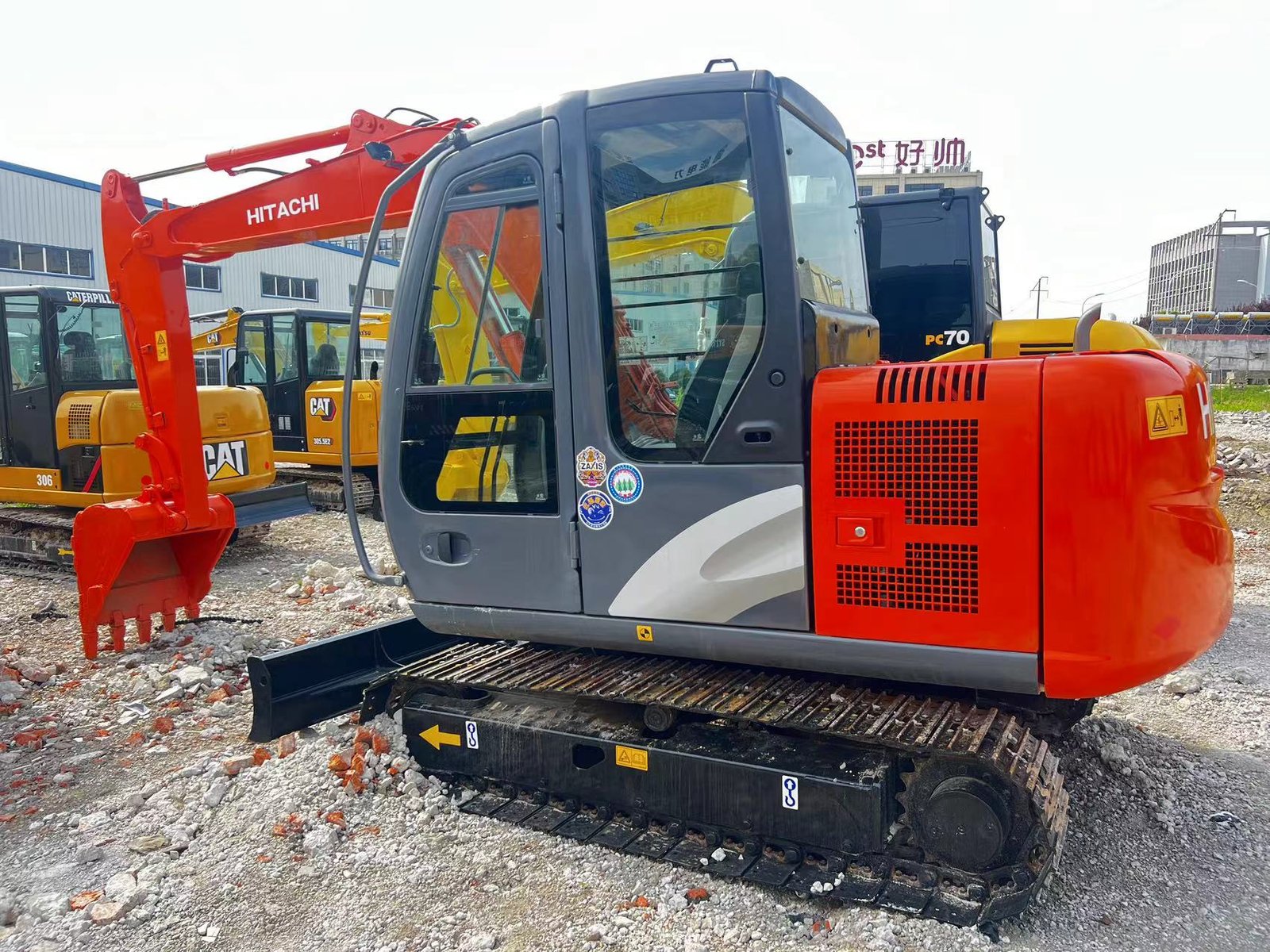

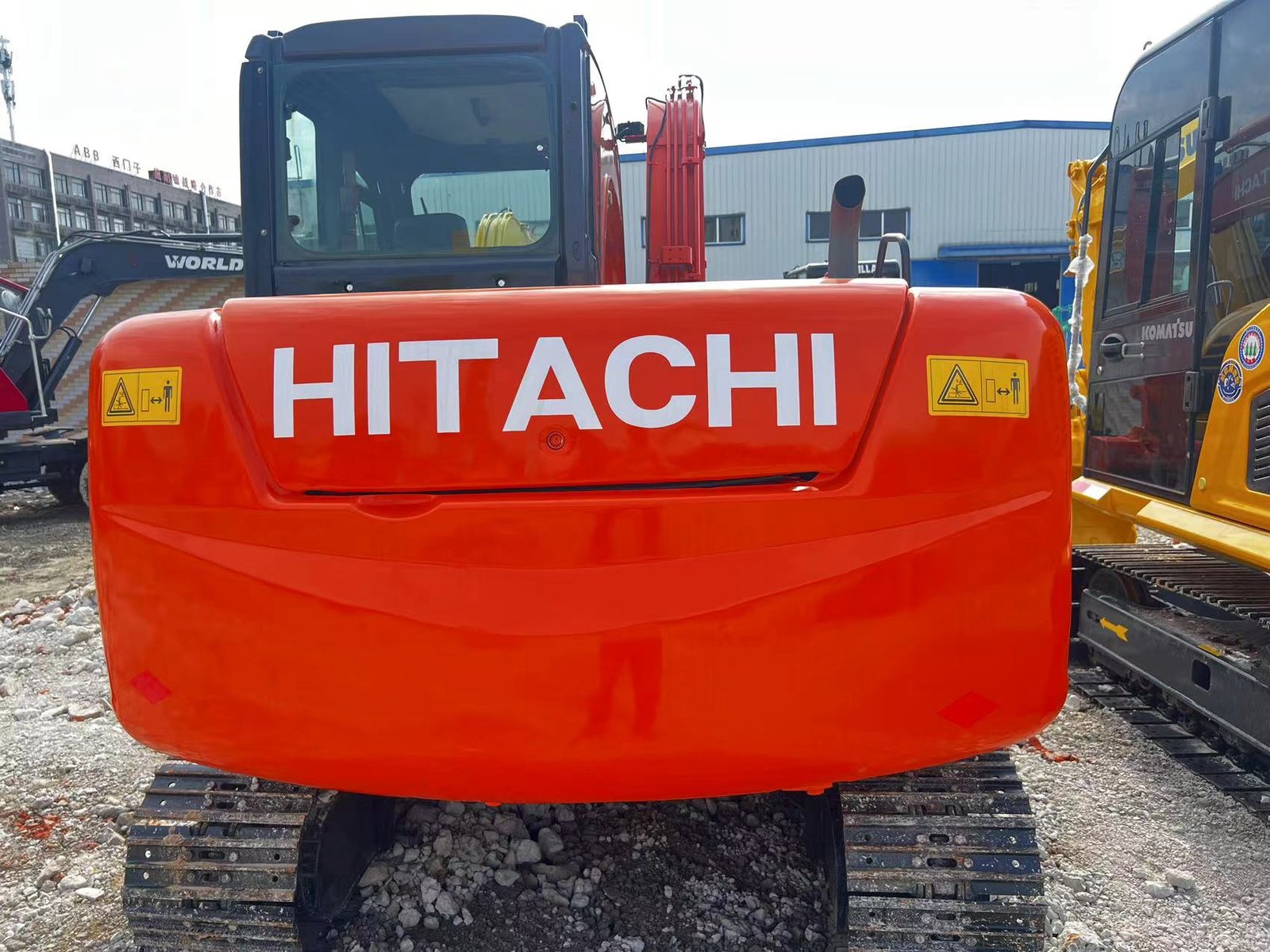

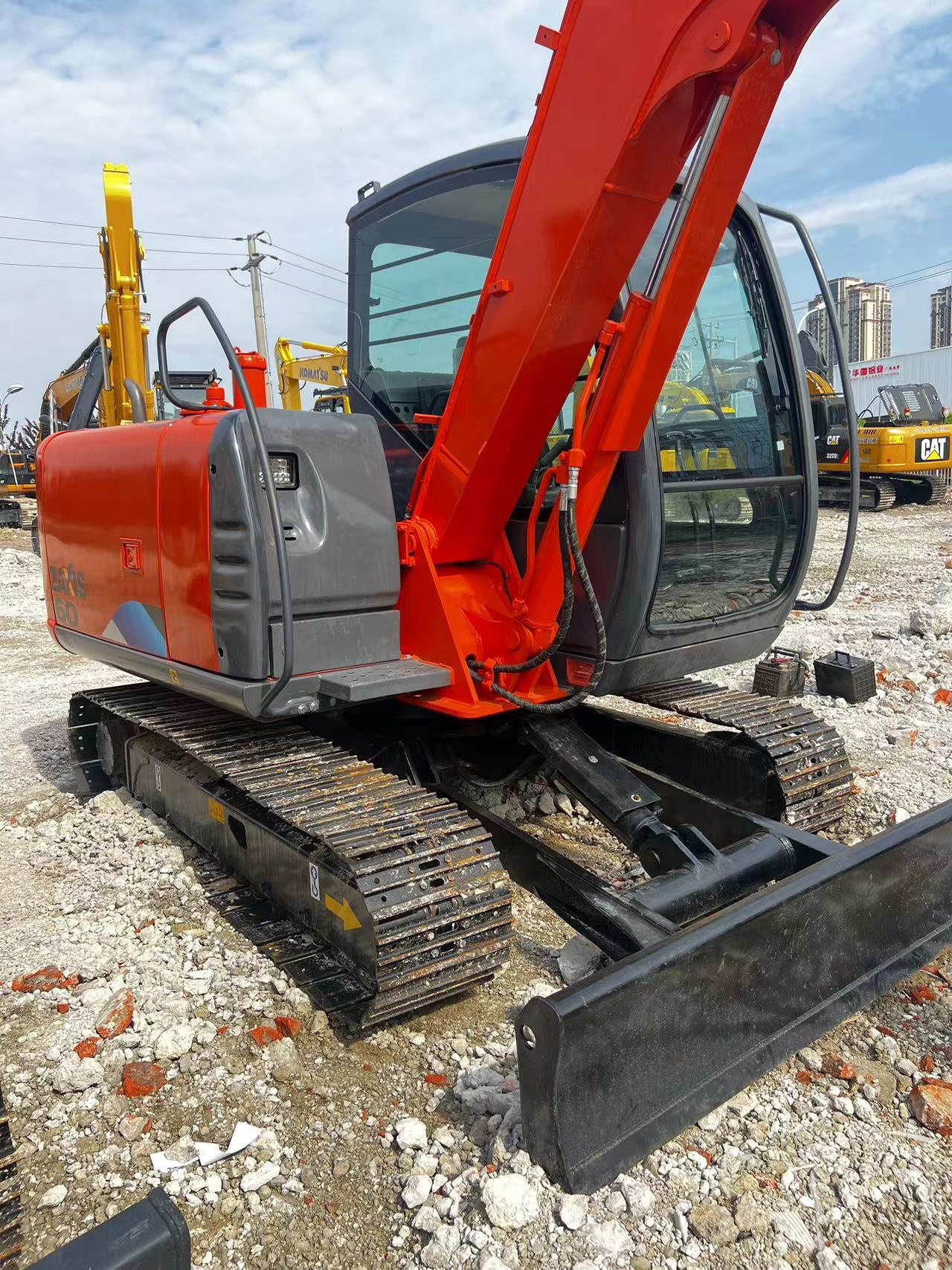

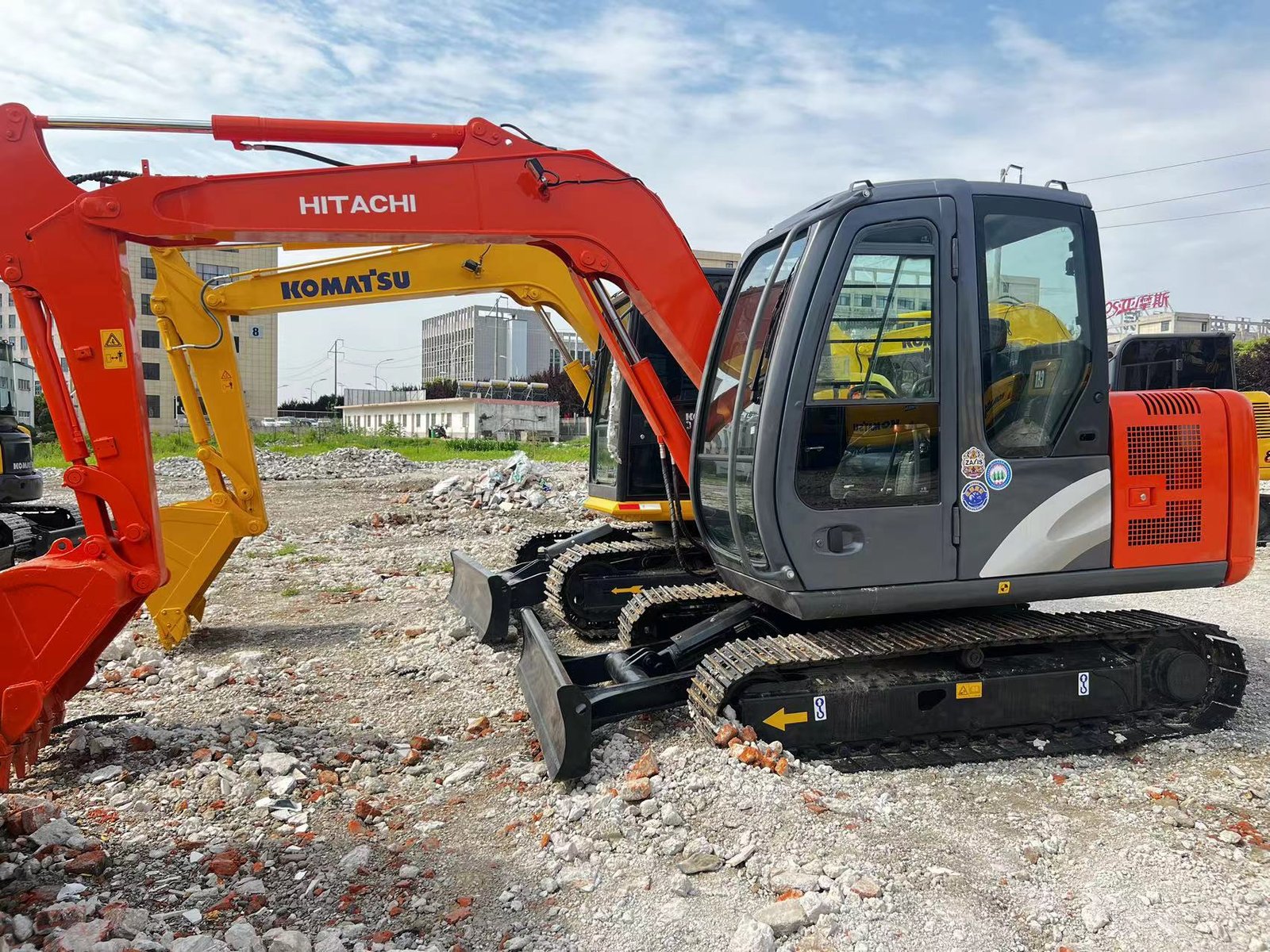

Hitachi ZX60

Here are the specifications of the Hitachi 60 excavator (English version) — typically referring to the Hitachi ZX60 Excavator (ZAXIS 60 series):

Hitachi ZX60 Excavator Specifications

General Information

• Machine Type: Mini / Compact Crawler Excavator
• Operating Weight: approx. 5,800 – 6,200 kg
• Bucket Capacity: 0.22 – 0.25 m³
• Application: Construction, landscaping, municipal works

Engine

• Engine Model: Yanmar 4TNV94L / 4TNV98
• Engine Power: approx. 39 – 40.5 kW (52 – 54 HP)
• Rated Speed: approx. 2,100 – 2,200 rpm
• Type: 4-cylinder, water-cooled diesel

Performance

• Max Digging Depth: approx. 3,800 – 4,000 mm
• Max Digging Reach: approx. 6,200 – 6,400 mm
• Max Dumping Height: approx. 4,200 mm
• Bucket Digging Force: approx. 42 kN
• Arm Digging Force: approx. 29 kN

Hydraulic System

• System Type: Load-sensing hydraulic system
• Main Pump Flow: approx. 2 × 60 L/min
• System Pressure: approx. 30.4 MPa

Travel & Mobility

• Travel Speed:
  • Low: 2.7 km/h
  • High: 4.5 – 4.8 km/h
• Swing Speed: approx. 9.3 rpm
• Gradeability: approx. 35°

Dimensions

• Overall Length: approx. 5,800 – 6,060 mm
• Overall Width: approx. 2,000 – 2,060 mm
• Overall Height: approx. 2,450 – 2,550 mm
• Tail Swing Radius: approx. 1,650 – 1,750 mm
• Ground Clearance: approx. 310 – 370 mm

Features

• Compact design for narrow working conditions
• Strong digging force with stable performance
• Fuel-efficient diesel engine
• Comfortable cab with ergonomic controls
• Suitable for attachments (breaker, auger, grapple)
