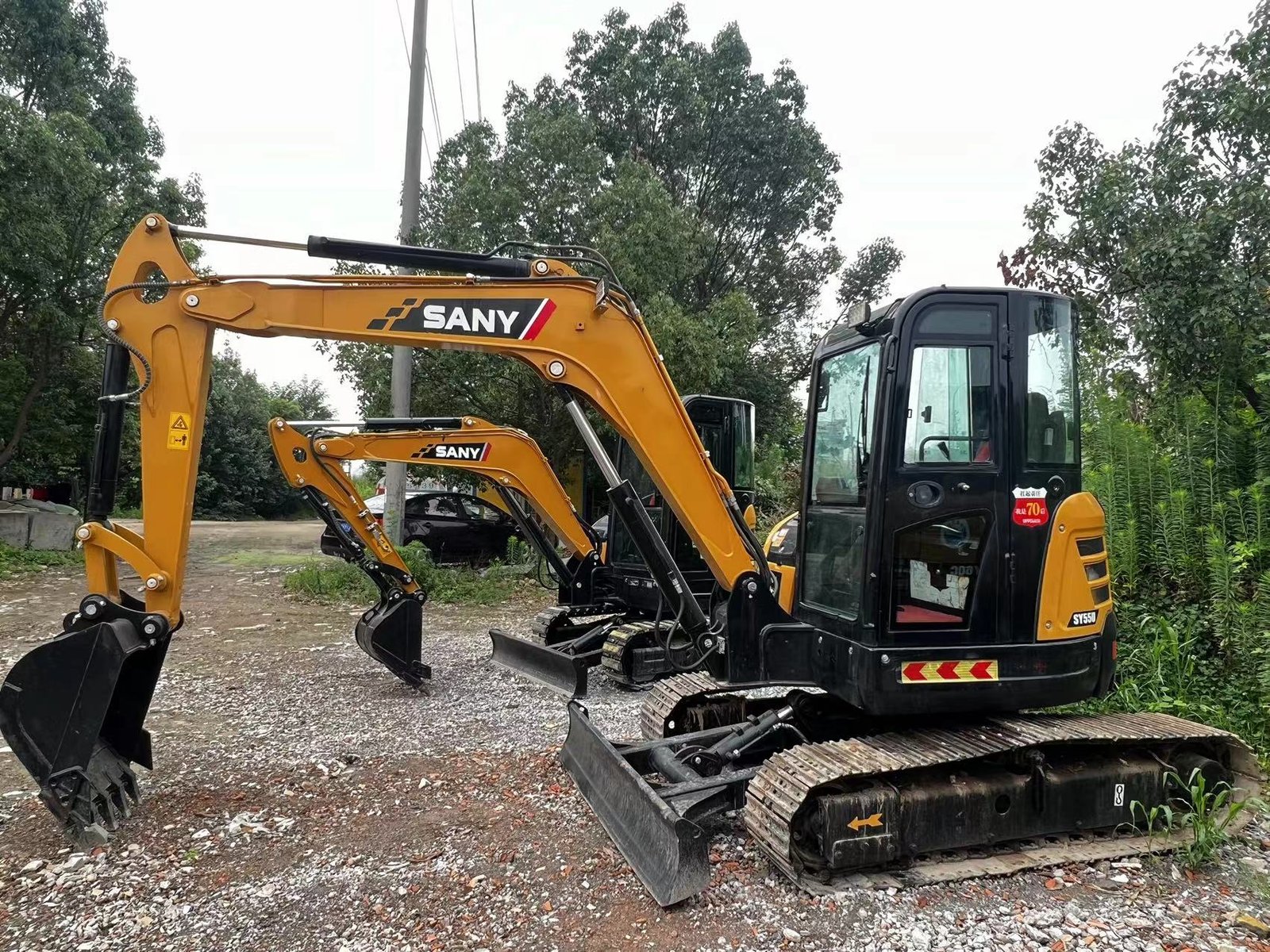

Sany 55U

Here are the specifications of the SANY 55U excavator (English version) — commonly referring to the SANY SY55U Excavator:

SANY SY55U Excavator Specifications

General Information

• Machine Type: Mini / Compact Excavator (Zero Tail Swing)
• Operating Weight: approx. 5,200 – 5,800 kg
• Bucket Capacity: 0.18 – 0.23 m³
• Application: Urban construction, landscaping, utility work

Engine

• Engine Model: Kubota V2607 / Yanmar / Isuzu (varies by version)
• Engine Power: approx. 36 kW (≈48 HP)
• Rated Speed: 2,000 – 2,200 rpm
• Type: 4-cylinder, water-cooled diesel

Performance

• Max Digging Depth: approx. 3,800 – 4,100 mm
• Max Digging Reach: approx. 6,500 – 6,800 mm
• Max Dumping Height: approx. 4,300 – 4,500 mm
• Bucket Digging Force: approx. 42 – 45 kN
• Arm Digging Force: approx. 28 – 33 kN

Hydraulic System

• Pump Type: Variable displacement axial piston pump
• Main Flow: approx. 2 × 100 L/min
• System Pressure: approx. 26 – 30 MPa
• Control System: Load-sensing hydraulic system

Travel & Mobility

• Travel Speed:
  • Low: 2.5 – 2.8 km/h
  • High: 4.0 – 4.8 km/h
• Swing Speed: approx. 10 rpm
• Gradeability: approx. 30° – 35°

Dimensions

• Overall Length: approx. 5,400 – 5,700 mm
• Overall Width: approx. 1,960 – 2,000 mm
• Overall Height: approx. 2,600 – 2,700 mm
• Ground Clearance: approx. 350 – 370 mm

Working Range

• Boom Length: approx. 3,000 mm
• Arm Length: approx. 1,550 mm (optional 1,700 mm)

Features

• True zero tail swing (ideal for narrow spaces)
• Strong digging force for 5.5-ton class
• Fuel-efficient engine with eco mode
• Comfortable cab with ROPS/FOPS safety
• Easy maintenance design with large service access
