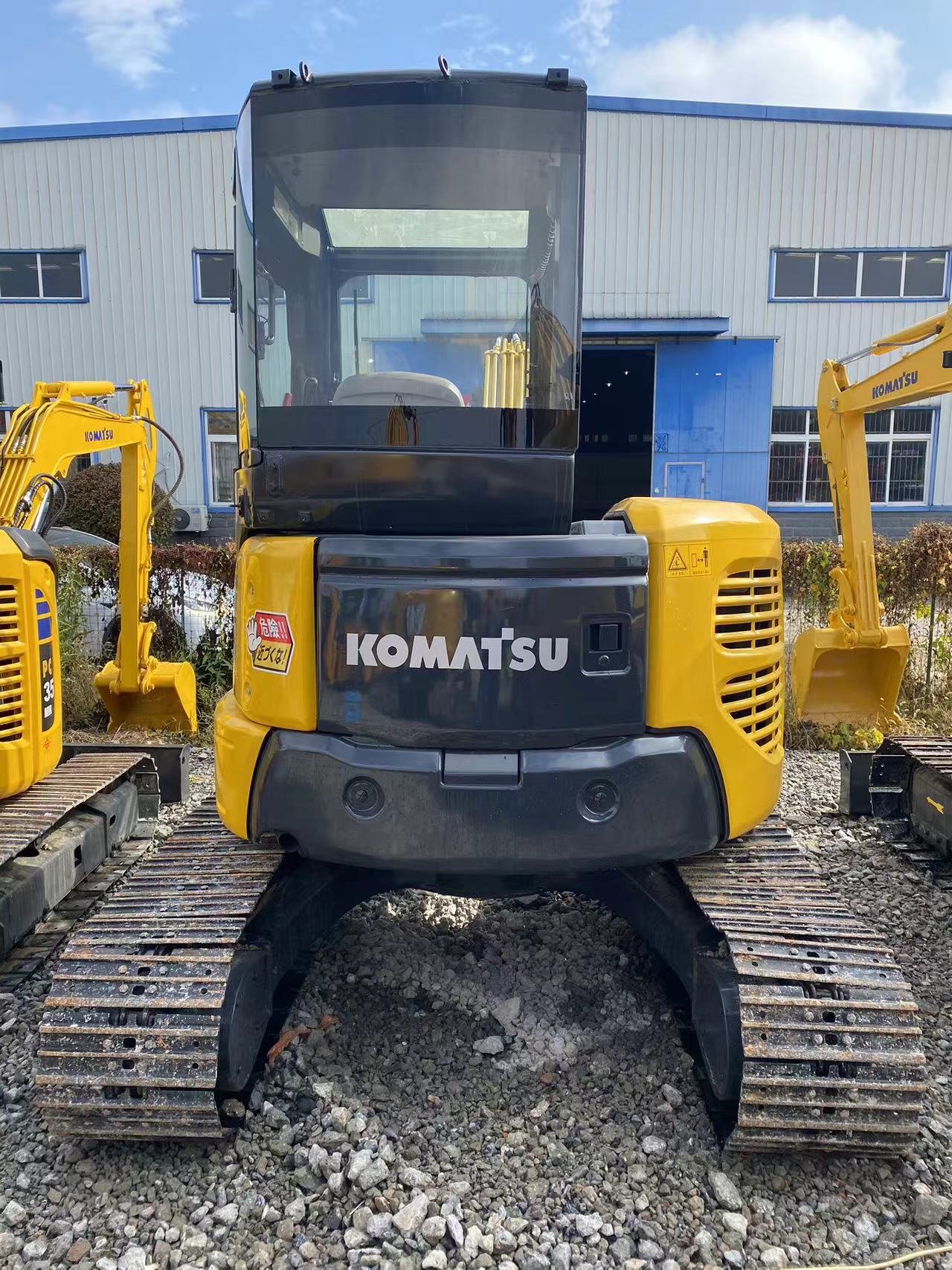

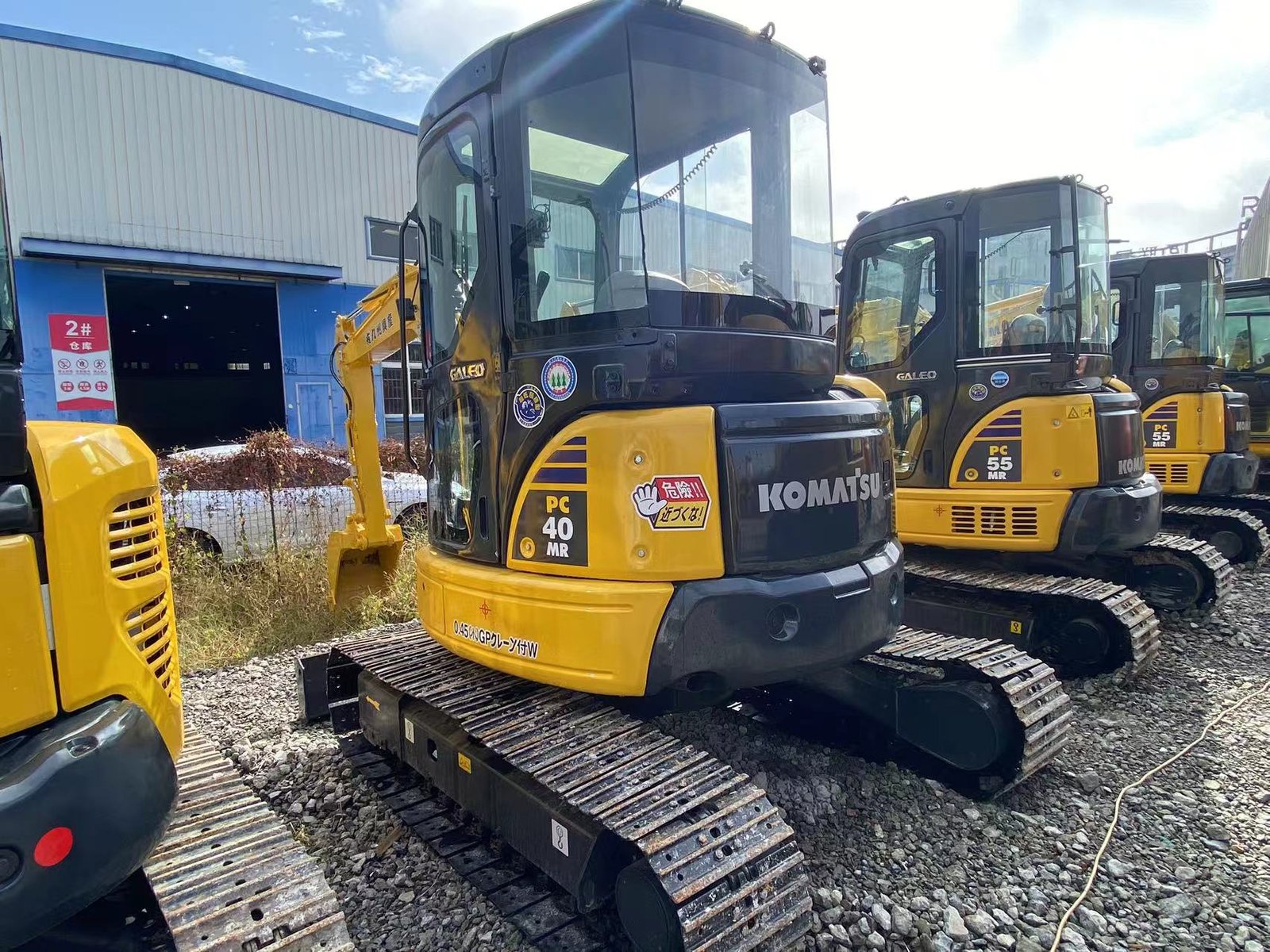

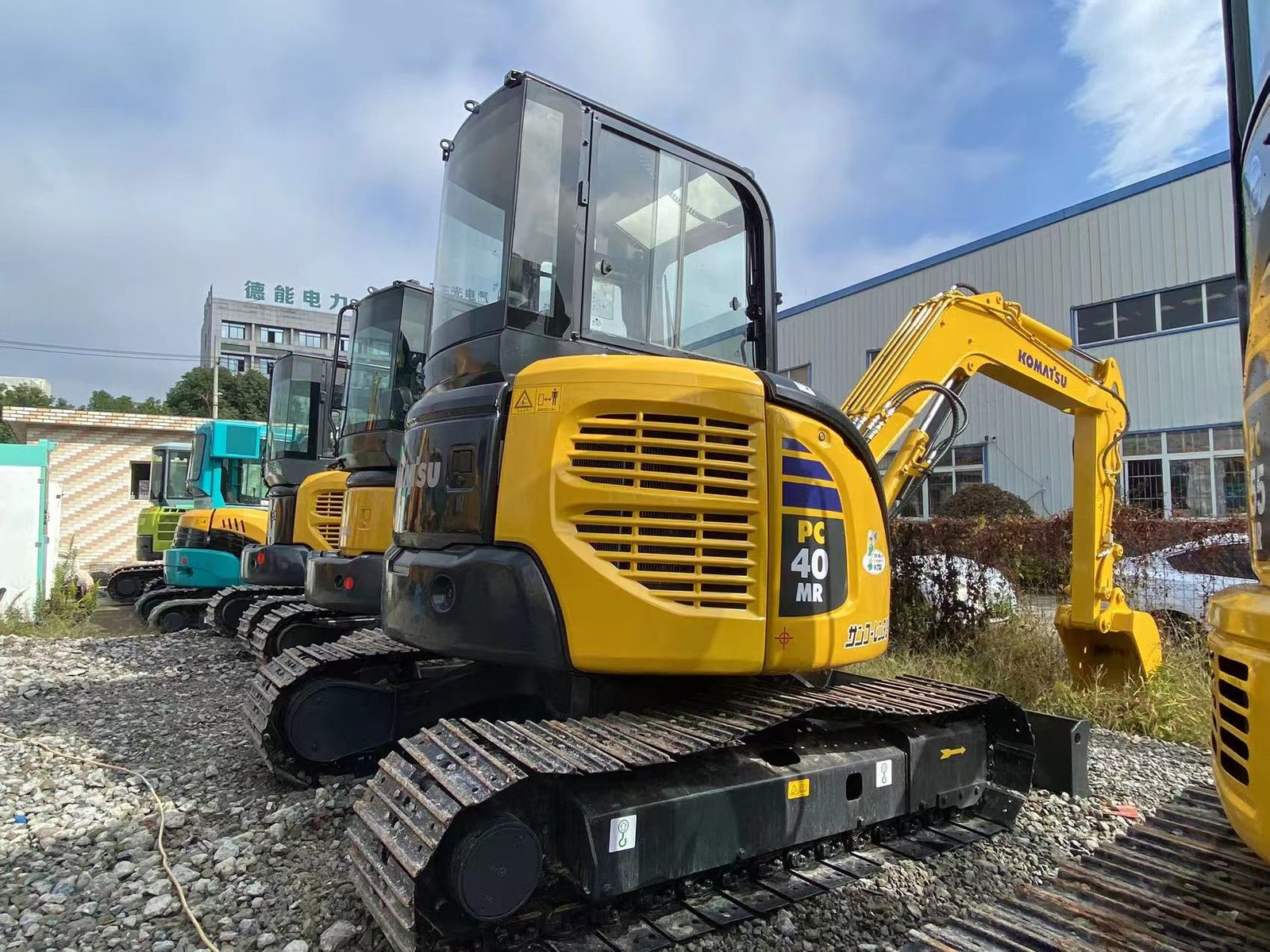

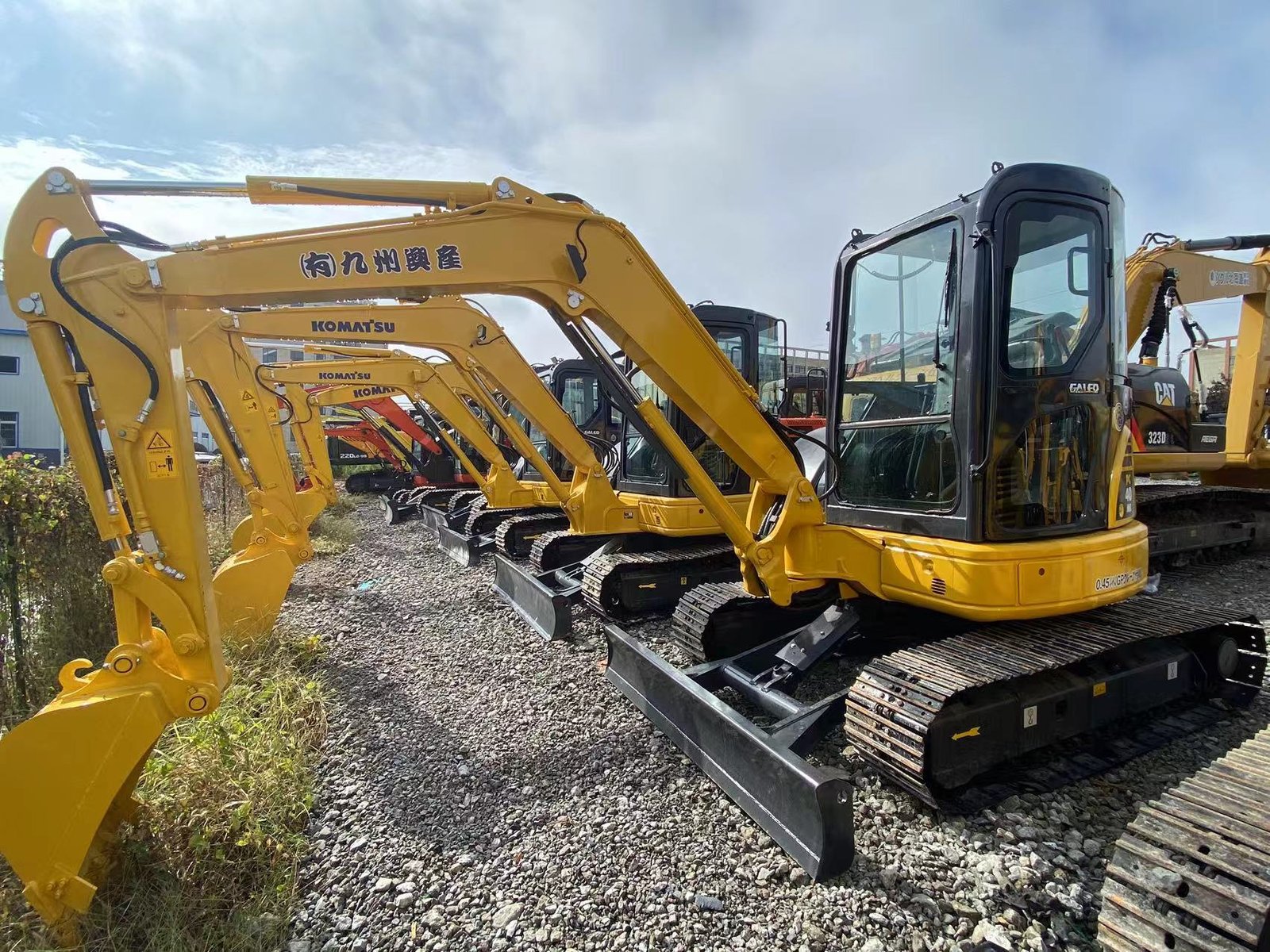

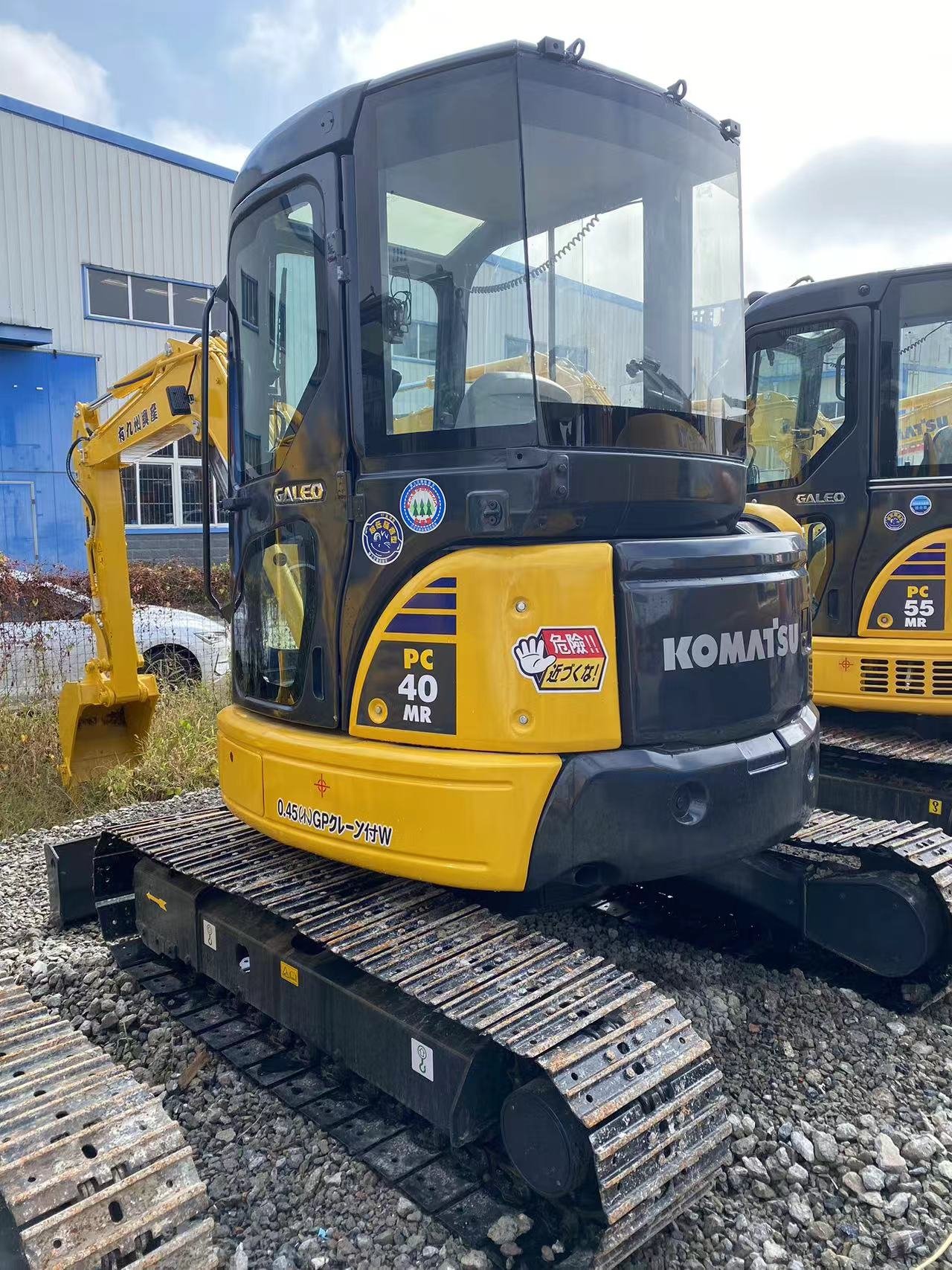

Komatsu PC40 for Sale

Here are the Komatsu PC40 Excavator Specifications (English version) — commonly referring to the Komatsu PC40MR-3:

Komatsu PC40 Specifications

General Information

• Machine Type: Mini Hydraulic Excavator
• Operating Weight: 4,000 – 4,700 kg
• Bucket Capacity: 0.14 – 0.16 m³
• Tail Type: Compact Radius / Short Tail Swing

Engine

• Engine Model: Komatsu 4D88E / 4D84E
• Engine Power: 28 – 30 kW (37 – 40 HP) @ 2,400–2,500 rpm
• Engine Type: 4-cylinder diesel
• Fuel Tank Capacity: approx. 60 L

Performance

• Max Digging Depth: 3,350 – 3,410 mm
• Max Digging Reach: approx. 5,500 – 5,800 mm
• Max Dumping Height: approx. 3,800 – 4,000 mm
• Bucket Digging Force: approx. 30 – 35 kN
• Arm Digging Force: approx. 20 – 22 kN

Hydraulic System

• Pump Type: Variable displacement piston pumps
• Main Pump Flow: approx. 110 – 120 L/min
• System Pressure: approx. 26.5 MPa

Travel & Mobility

• Travel Speed:
  • Low: 2.8 km/h
  • High: 4.3 – 4.8 km/h
• Swing Speed: approx. 9 rpm
• Gradeability: 30°

Dimensions

• Overall Length: approx. 5,160 – 5,240 mm
• Overall Width: approx. 1,960 – 1,980 mm
• Overall Height: approx. 2,550 – 2,590 mm
• Ground Clearance: approx. 290 mm
• Track Shoe Width: 350 – 400 mm

Features

• Compact tail swing for narrow job sites
• Reliable Komatsu diesel engine
• Smooth hydraulic control system

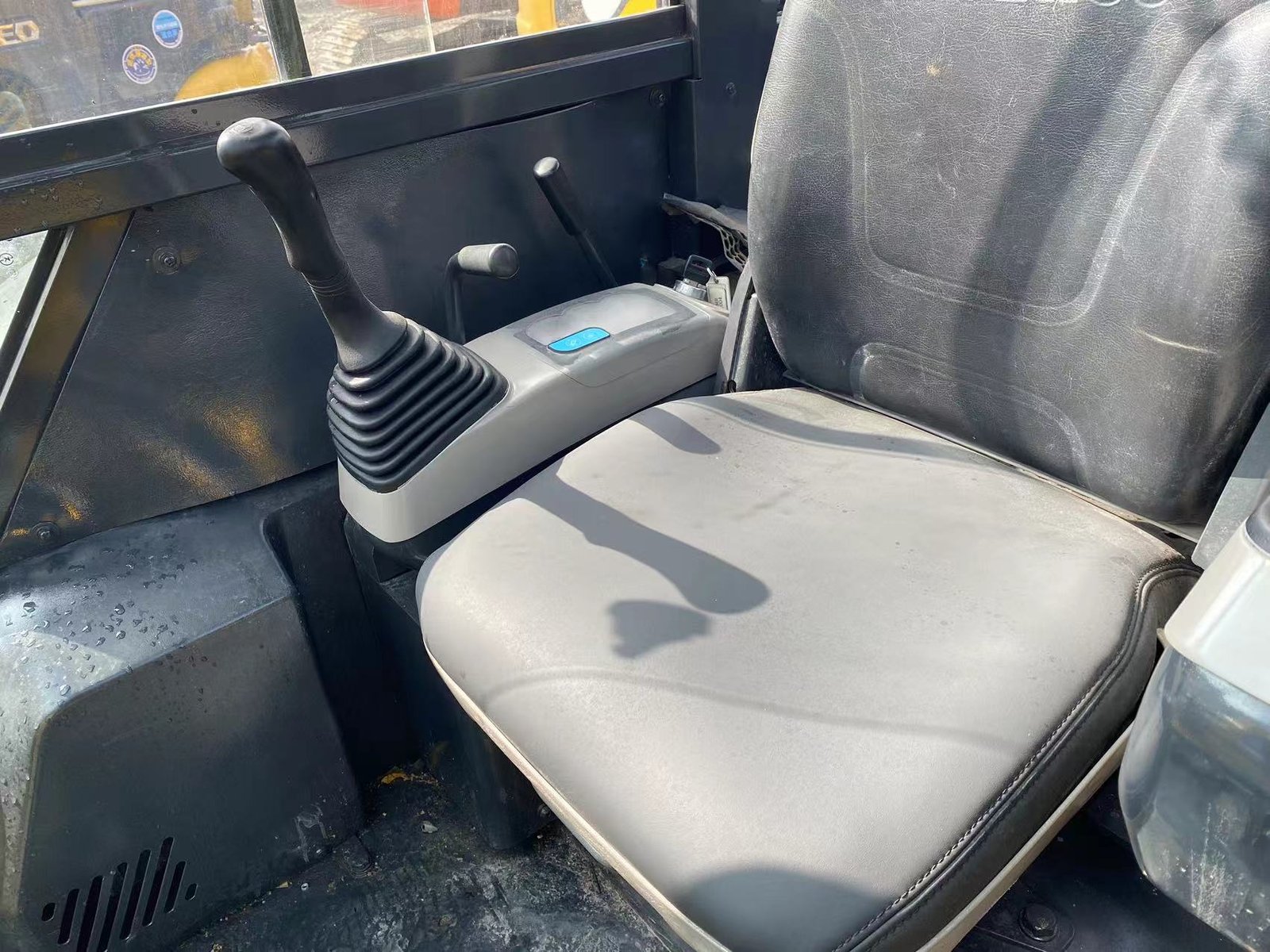

• Comfortable operator cab
• Suitable for breaker, auger, grapple attachments

If you mean Komatsu PC40-6 / PC40MR-2 / PC40MR-3, I can also provide specific model parameters or export sales descriptions.
