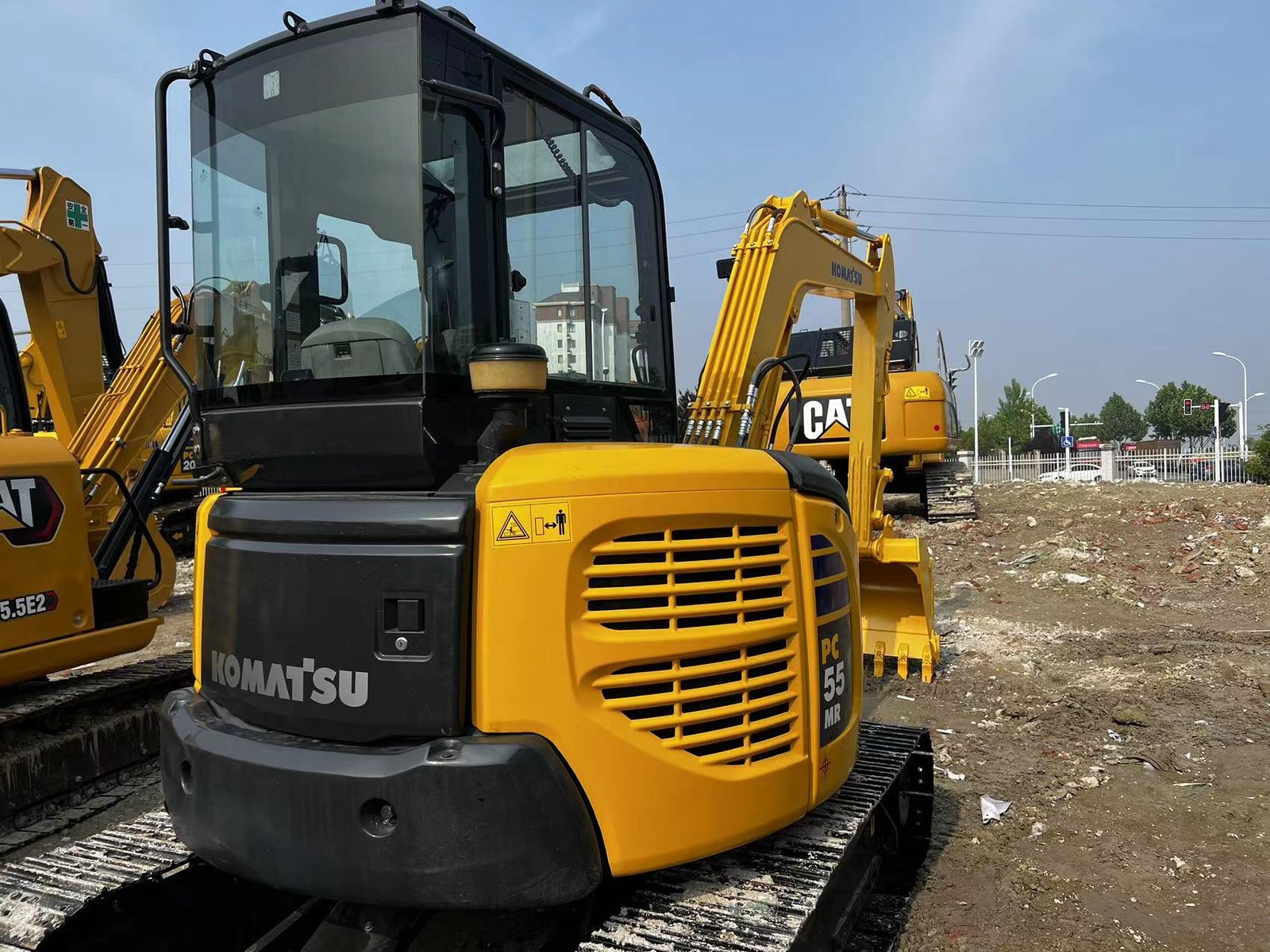

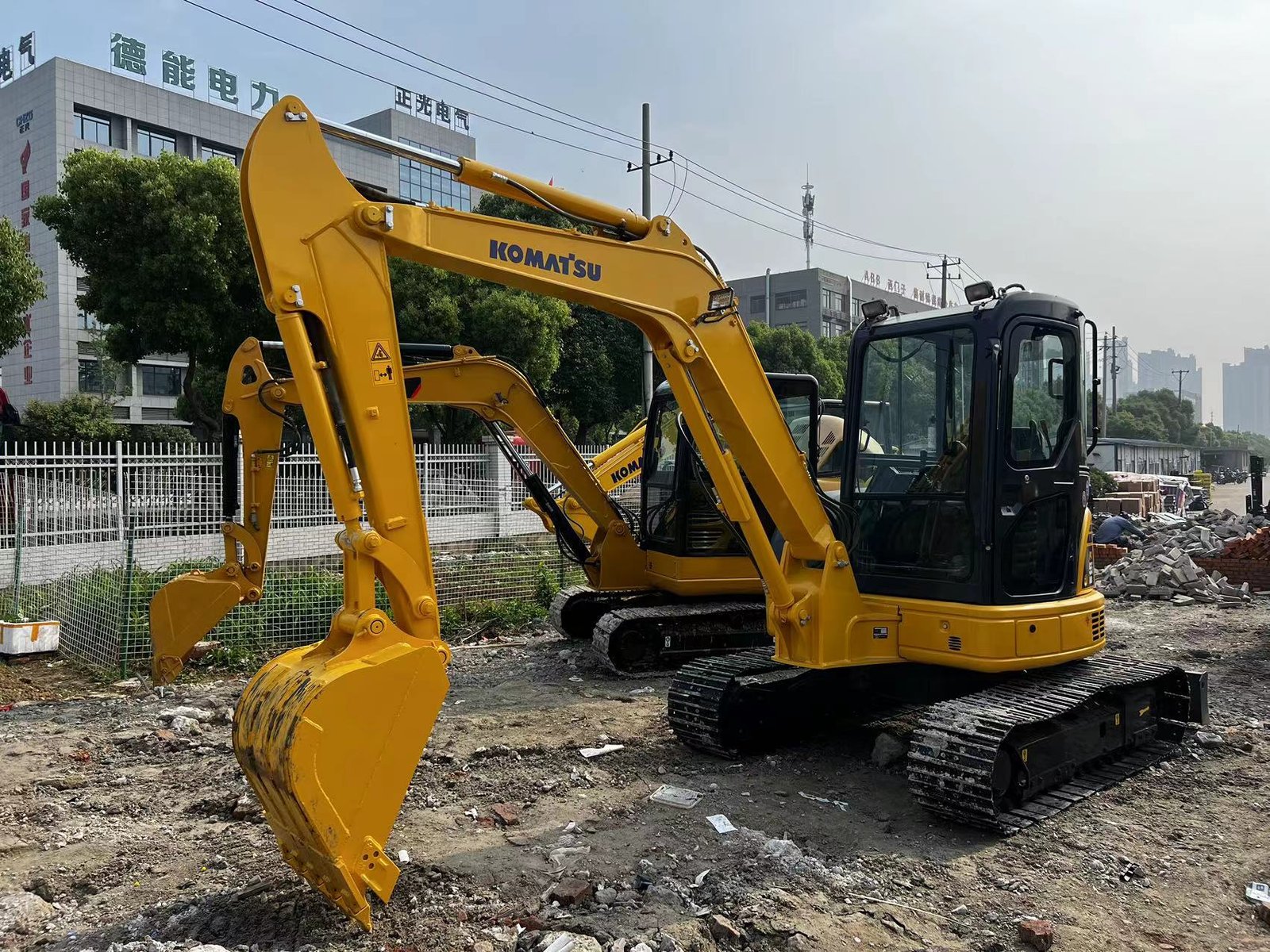

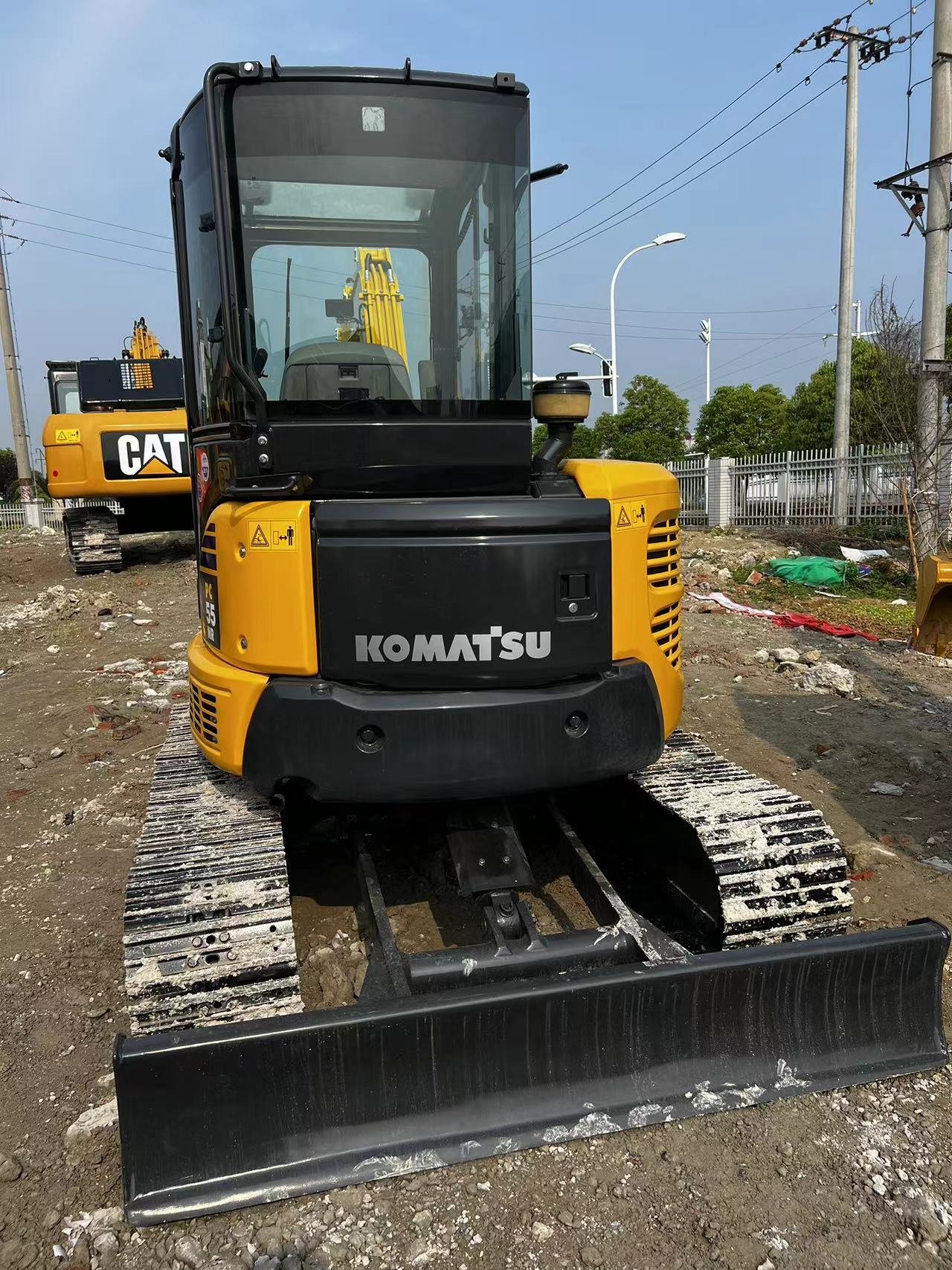

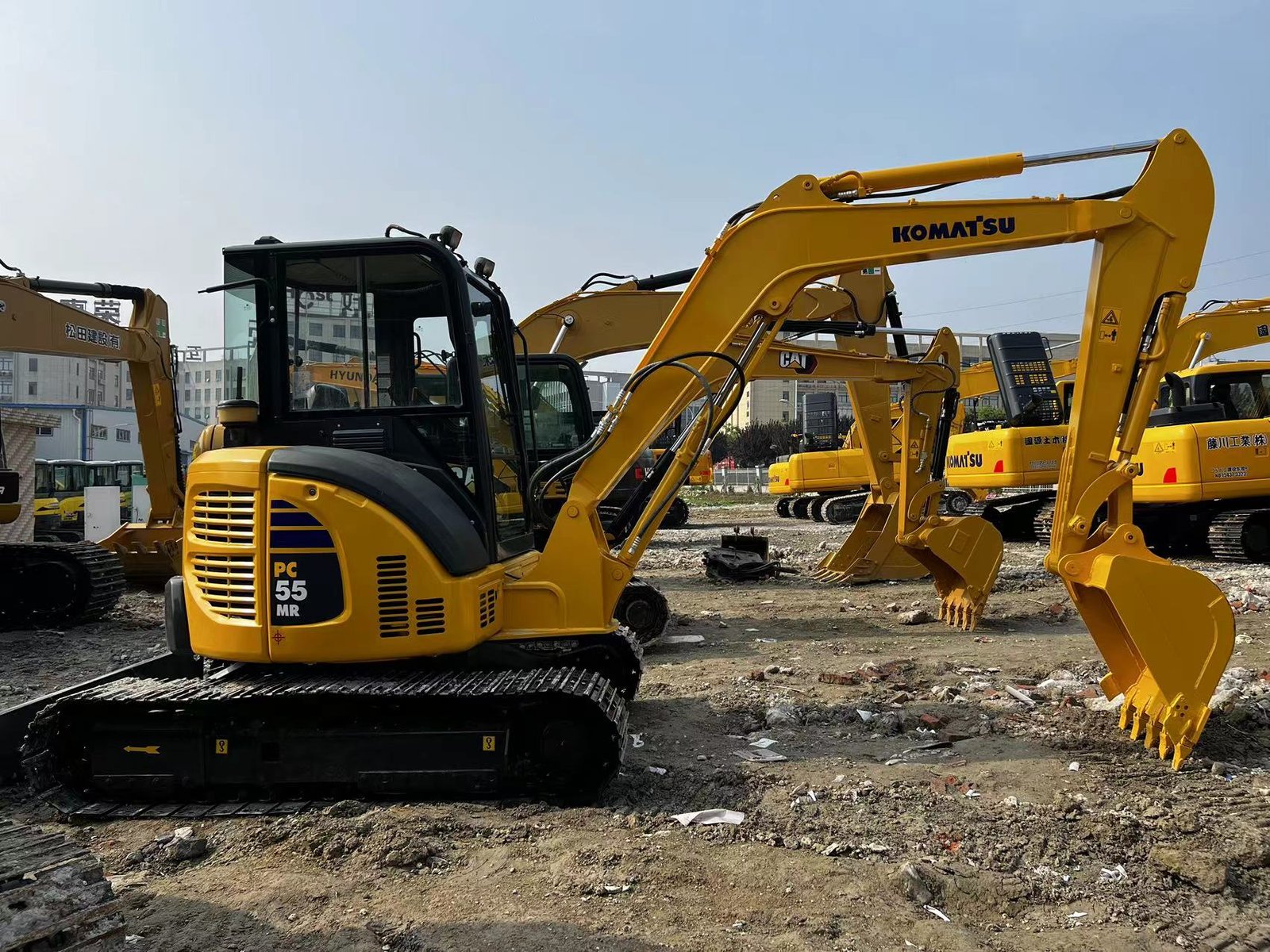

Komatsu PC55 for sale

Here are the Komatsu PC55 Excavator Specifications (English version) — commonly referring to the Komatsu PC55MR-3:

Komatsu PC55 Specifications

General Information

• Machine Type: Mini Hydraulic Excavator
• Operating Weight: 5,160 – 5,280 kg
• Bucket Capacity: 0.055 – 0.18 m³
• Tail Type: Short Tail Swing (Compact Radius)

Engine

• Engine Model: Komatsu 4D88E-6
• Engine Power: 28.5 kW (39 HP) @ 2,400 rpm
• Engine Type: 4-cylinder diesel
• Fuel Tank Capacity: 65 L

Performance

• Max Digging Depth: 3,800 – 4,160 mm
• Max Digging Reach: approx. 6,070 – 6,220 mm
• Max Dumping Height: approx. 4,230 mm
• Bucket Digging Force: approx. 35 – 39 kN
• Arm Digging Force: approx. 22 – 25 kN

Hydraulic System

• Pump Type: Variable displacement piston pumps
• Main Pump Flow: approx. 140 L/min
• System Pressure: approx. 26.5 MPa

Travel & Mobility

• Travel Speed:
  • Low: 2.6 km/h
  • High: 4.6 – 4.7 km/h
• Swing Speed: 9 rpm
• Gradeability: 30°

Dimensions

• Overall Length: approx. 5,550 mm
• Overall Width: approx. 1,960 mm
• Overall Height: approx. 2,550 mm
• Ground Clearance: approx. 300 mm
• Track Shoe Width: 400 mm

Features

• Compact short-tail design for confined spaces
• Powerful and fuel-efficient Komatsu engine
• Smooth hydraulic control system
• Excellent stability and digging force
• Suitable for breaker, auger, grapple and quick coupler attachments

If you need Komatsu PC55MR-3 / PC55MR-5 comparison or used machine sales description in English, I can also help.
